Triad Magnetics FS20-120-C2
- Part No.:
- FS20-120-C2
- Manufacturer:
- Triad Magnetics
- Category:
- Power Transformers
- Package:
- Datasheet:
-
FS20-120-C2.pdf
- Description:
- PWR XFMR LAMINATED 2.4VA TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FS20-120-C2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Triad Magnetics
- Series:
- Split Pack™, Class 2/3, FS
- Packaging:
- Tube
- Product Status:
- Active
- Type:
- Laminated Core
- Voltage - Primary:
- 115V, 230V
- Voltage - Secondary (Full Load):
- Parallel 10V, Series 20V
- Current - Output (Max):
- Parallel 240mA, Series 120mA
- Primary Winding(s):
- Dual
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 2.4VA
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Size / Dimension:
- 34.93mm L x 28.58mm W
- Height - Seated (Max):
- 30.15mm
- Voltage - Isolation:
- 4200Vrms
- Weight:
- 0.25 lb (113.4 g)

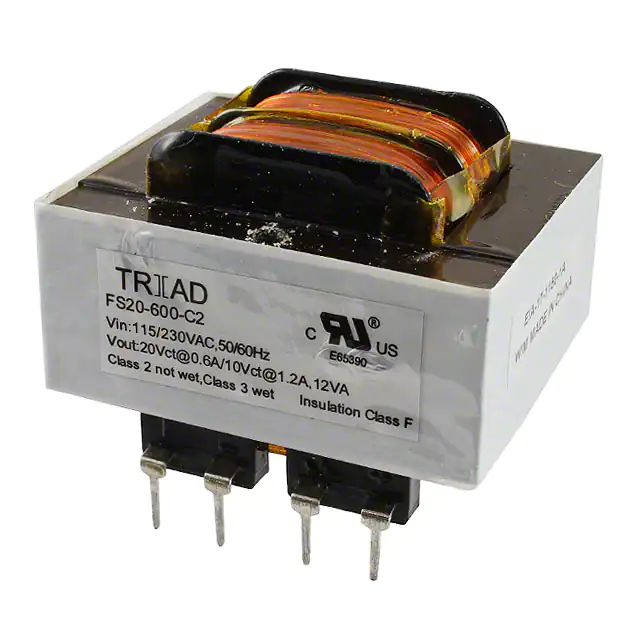

| Image |  |
|
 |
 |
 |
| Part Number | FS20-120-C2 | FS20-055-C2 | FS20-600 | FS20-120 | FS20-600-C2 |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| Series | Split Pack™, Class 2/3, FS | Split Pack™, Class 2/3, FS | Split Pack™ | Split Pack™ | Split Pack™, Class 2/3, FS |
| Packaging | Tube | Tube | Box | Box | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Type | Laminated Core | Laminated Core | Laminated Core | Laminated Core | Laminated Core |
| Voltage - Primary | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 10V, Series 20V | Parallel 10V, Series 20V | Parallel 10V, Series 20V | Parallel 10V, Series 20V | Parallel 10V, Series 20V |
| Current - Output (Max) | Parallel 240mA, Series 120mA | Parallel 110mA, Series 55mA | Parallel 1.2A, Series 600mA | Parallel 240mA, Series 120mA | Parallel 1.2A, Series 600mA |
| Primary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Secondary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Center Tap | No | No | No | No | No |
| Power - Max | 2.4VA | 1.1VA | 12VA | 2.4VA | 12VA |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Size / Dimension | 34.93mm L x 28.58mm W | 34.93mm L x 28.58mm W | 47.63mm L x 39.67mm W | 34.93mm L x 28.58mm W | 47.63mm L x 39.67mm W |
| Height - Seated (Max) | 30.15mm | 23.80mm | 36.50mm | 30.15mm | 36.50mm |
| Voltage - Isolation | 4200Vrms | 4200Vrms | 2500Vrms | 2500Vrms | 4200Vrms |
| Weight | 0.25 lb (113.4 g) | 0.17 lb (77.11 g) | 0.7 lb (317.51 g) | 0.25 lb (113.4 g) | 0.7 lb (317.51 g) |
