Triad Magnetics VPP24-100
- Part No.:
- VPP24-100
- Manufacturer:
- Triad Magnetics
- Category:
- Power Transformers
- Package:
- Datasheet:
-
VPP24-100.pdf
- Description:
- PWR XFMR LAMINATED 2.5VA TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
VPP24-100 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Triad Magnetics
- Series:
- PC Mount: World Series™
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Laminated Core
- Voltage - Primary:
- 115V, 230V
- Voltage - Secondary (Full Load):
- Parallel 12V, Series 24V
- Current - Output (Max):
- Parallel 200mA, Series 100mA
- Primary Winding(s):
- Dual
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 2.5VA
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Size / Dimension:
- 41.28mm L x 33.32mm W
- Height - Seated (Max):
- 28.58mm
- Voltage - Isolation:
- 4000Vrms
- Weight:
- 0.25 lb (113.4 g)
| Image |  |
 |
 |
 |
 |

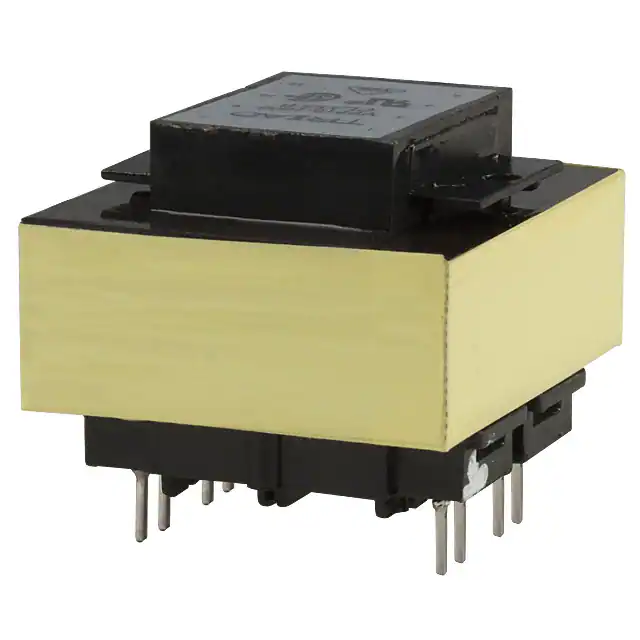

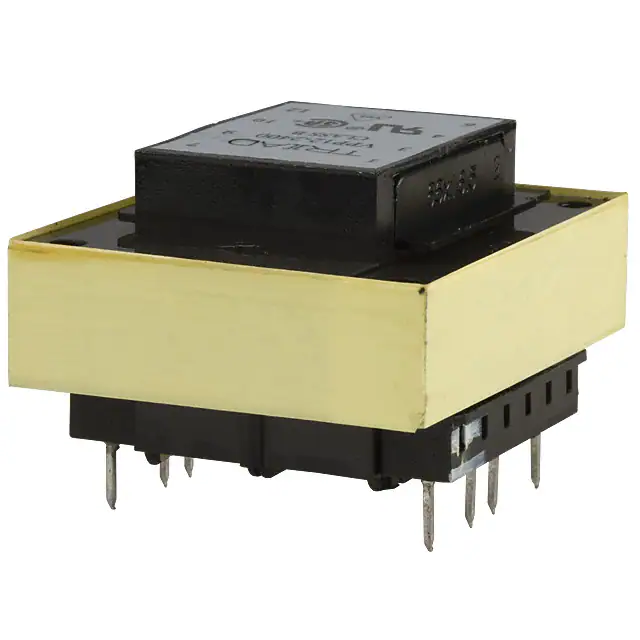

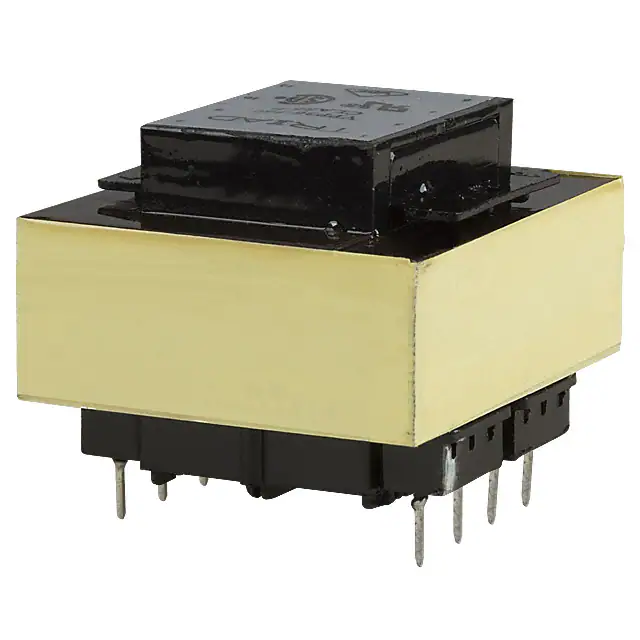

| Part Number | VPP24-100 | VPP24-210 | VPP24-420 | VPP24-1250 | VPP24-830 |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| Series | PC Mount: World Series™ | PC Mount: World Series™ | PC Mount: World Series™ | PC Mount: World Series™ | PC Mount: World Series™ |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Type | Laminated Core | Laminated Core | Laminated Core | Laminated Core | Laminated Core |
| Voltage - Primary | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V | Parallel 12V, Series 24V | Parallel 12V, Series 24V | Parallel 12V, Series 24V | Parallel 12V, Series 24V |
| Current - Output (Max) | Parallel 200mA, Series 100mA | Parallel 420mA, Series 210mA | Parallel 840mA, Series 420mA | Parallel 2.5A, Series 1.25A | Parallel 1.66A, Series 830mA |
| Primary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Secondary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Center Tap | No | No | No | No | No |
| Power - Max | 2.5VA | 5VA | 10VA | 30VA | 20VA |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Size / Dimension | 41.28mm L x 33.32mm W | 41.28mm L x 33.32mm W | 47.63mm L x 39.67mm W | 66.68mm L x 55.55mm W | 57.15mm L x 47.63mm W |
| Height - Seated (Max) | 28.58mm | 34.93mm | 34.93mm | 39.67mm | 41.28mm |
| Voltage - Isolation | 4000Vrms | 4000Vrms | 4000Vrms | 4000Vrms | 4000Vrms |
| Weight | 0.25 lb (113.4 g) | 0.37 lb (167.83 g) | 0.53 lb (240.4 g) | 1.2 lbs (544.3 g) | 0.9 lb (408.23 g) |
- Include Parts
- Popular Search
The following parts include "VPP24-100" in Silicon Labs VPP24-100.
- Part Number
- Manufacturer
- Package
- Description
- FS12-090-C2 Triad Magnetics PWR XFMR LAMINATED 1.1VA TH
- FS24-045-C2 Triad Magnetics PWR XFMR LAMINATED 1.1VA TH
- F12-200-C2 Triad Magnetics PWR XFMR LAMINATED 2.5VA TH
- FS20-120-C2 Triad Magnetics PWR XFMR LAMINATED 2.4VA TH
- FS24-100-C2 Triad Magnetics PWR XFMR LAMINATED 2.4VA TH
- FS12-200-C2 Triad Magnetics PWR XFMR LAMINATED 2.4VA TH
- VPP28-090 Triad Magnetics PWR XFMR LAMINATED 2.5VA TH
- PL5.0-24-130B Tamura PWR XFMR LAMINATED 5VA TH
- ST-3-24 Signal Transformer PWR XFMR LAMINATED 2.4VA TH
- VPP24-100 Triad Magnetics PWR XFMR LAMINATED 2.5VA TH
