Triad Magnetics VPT230-700
- Part No.:
- VPT230-700
- Manufacturer:
- Triad Magnetics
- Category:
- Power Transformers
- Package:
- Datasheet:
-
VPT230-700.pdf
- Description:
- PWR XFMR TOROIDAL 160VA CHAS MT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
VPT230-700 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Triad Magnetics
- Series:
- Chassis Mount: World Series™
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Toroidal
- Voltage - Primary:
- 115V, 230V
- Voltage - Secondary (Full Load):
- Parallel 115V, Series 230V
- Current - Output (Max):
- Parallel 1.4A, Series 700mA
- Primary Winding(s):
- Dual
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 160VA
- Mounting Type:
- Chassis Mount
- Termination Style:
- Wire Leads
- Size / Dimension:
- 103.00mm Dia x 48.00mm W
- Height - Seated (Max):
- 52.0mm
- Voltage - Isolation:
- 4000Vrms
- Weight:
- 3.6 lbs (1.6 kg)

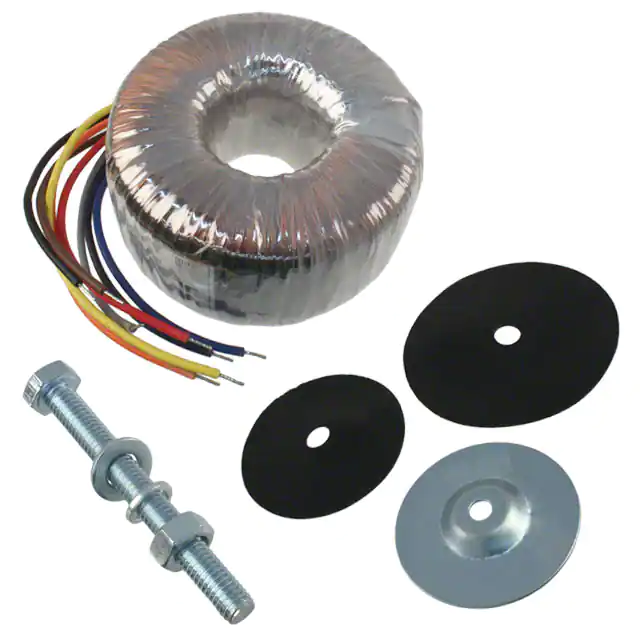

| Image |  |
 |
 |
 |
 |
| Part Number | VPT230-220 | VPT230-700 | VPT230-2170 | VPT230-4350 | VPT230-430 |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| Series | Chassis Mount: World Series™ | Chassis Mount: World Series™ | Chassis Mount: World Series™ | Chassis Mount: World Series™ | Chassis Mount: World Series™ |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Type | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal |
| Voltage - Primary | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 115V, Series 230V | Parallel 115V, Series 230V | Parallel 115V, Series 230V | Parallel 115V, Series 230V | Parallel 115V, Series 230V |
| Current - Output (Max) | Parallel 440mA, Series 220mA | Parallel 1.4A, Series 700mA | Parallel 4.34A, Series 2.17A | Parallel 8.7A, Series 4.35A | Parallel 860mA, Series 430mA |
| Primary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Secondary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Center Tap | No | No | No | No | No |
| Power - Max | 50VA | 160VA | 500VA | 1000VA | 100VA |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Termination Style | Wire Leads | Wire Leads | Wire Leads | Wire Leads | Wire Leads |
| Size / Dimension | 80.00mm Dia x 33.00mm W | 103.00mm Dia x 48.00mm W | 140.00mm Dia x 60.00mm W | 175.00mm Dia x 68.00mm W | 87.00mm Dia x 47.00mm W |
| Height - Seated (Max) | 36.0mm | 52.0mm | 66.0mm | 76.0mm | 51.0mm |
| Voltage - Isolation | 4000Vrms | 4000Vrms | 4000Vrms | 4000Vrms | 4000Vrms |
| Weight | 1.4 lbs (635 g) | 3.6 lbs (1.6 kg) | 9.3 lbs (4.2 kg) | 18 lbs (8.2 kg) | 2.2 lbs (997.9 g) |
