Triad Magnetics VPL10-500
- Part No.:
- VPL10-500
- Manufacturer:
- Triad Magnetics
- Category:
- Power Transformers
- Package:
- Datasheet:
-
VPL10-500.pdf
- Description:
- PWR XFMR LAMINATED 5.0VA CHAS MT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
VPL10-500 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Triad Magnetics
- Series:
- Chassis Mount: World Series™
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Laminated Core
- Voltage - Primary:
- 115V, 230V
- Voltage - Secondary (Full Load):
- 10V
- Current - Output (Max):
- 500mA
- Primary Winding(s):
- Dual
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 5.0VA
- Mounting Type:
- Chassis Mount
- Termination Style:
- Wire Leads
- Size / Dimension:
- 36.52mm L x 60.33mm W
- Height - Seated (Max):
- 36.52mm
- Voltage - Isolation:
- 3500Vrms
- Weight:
- 0.4 lb (181.44 g)
| Image |  |
 |
 |
 |

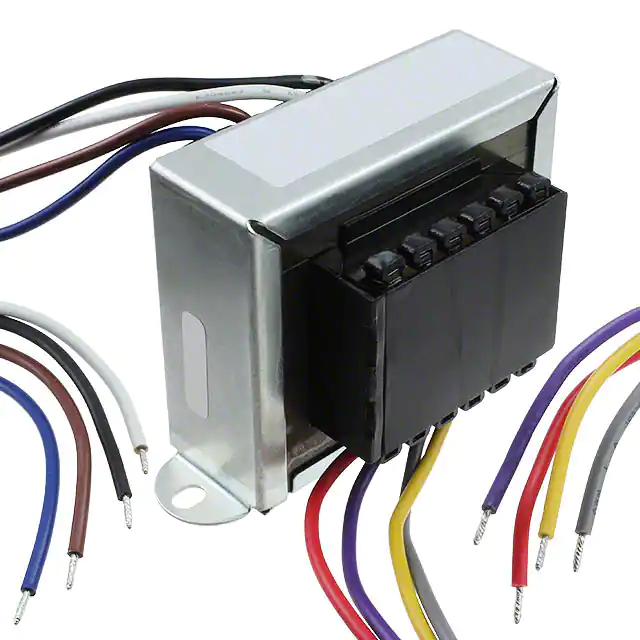

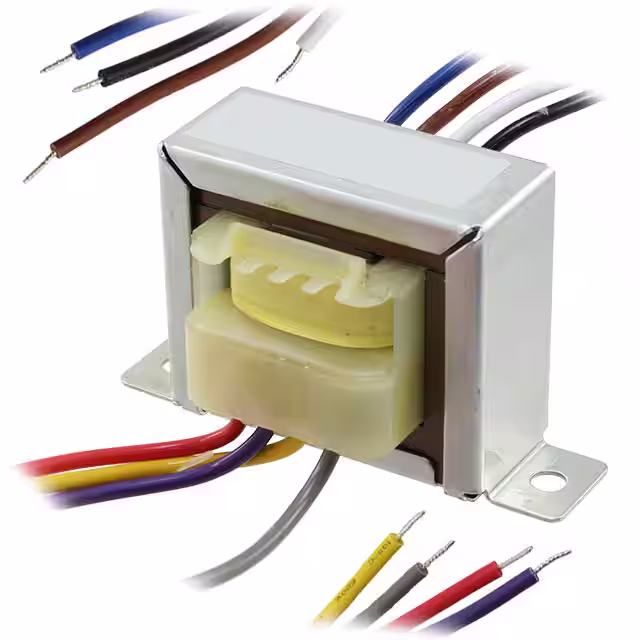

| Part Number | VPL10-500 | VPL10-2500 | VPL10-1000 | VPL10-5000 |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| Series | Chassis Mount: World Series™ | Chassis Mount: World Series™ | Chassis Mount: World Series™ | Chassis Mount: World Series™ |
| Packaging | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active |
| Type | Laminated Core | Laminated Core | Laminated Core | Laminated Core |
| Voltage - Primary | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V |
| Voltage - Secondary (Full Load) | 10V | 10V | 10V | 10V |
| Current - Output (Max) | 500mA | 2.5A | 1A | 5A |
| Primary Winding(s) | Dual | Dual | Dual | Dual |
| Secondary Winding(s) | Dual | Dual | Dual | Dual |
| Center Tap | No | No | No | No |
| Power - Max | 5.0VA | 25.0VA | 10.0VA | 50.0VA |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Termination Style | Wire Leads | Wire Leads | Wire Leads | Wire Leads |
| Size / Dimension | 36.52mm L x 60.33mm W | 53.98mm L x 82.55mm W | 36.52mm L x 71.44mm W | 57.15mm L x 101.6mm W |
| Height - Seated (Max) | 36.52mm | 49.22 mm | 44.45mm | 65.09mm |
| Voltage - Isolation | 3500Vrms | 3500Vrms | 3500Vrms | 3500Vrms |
| Weight | 0.4 lb (181.44 g) | 1.3 lbs (589.7 g) | 0.7 lb (317.51 g) | 2.3 lbs (1 kg) |
