BOE TV110XUM-LZ3-1QP0
- Part No.:
- TV110XUM-LZ3-1QP0
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 11" IPS Assembly 1600×2176 310nits WLED MIPI 61pins In-Cell Touch
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
TV110XUM-LZ3-1QP0 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 11"
- TNVAIPS:
- IPS
- Resolution:
- 1600×2176
- CR:
- 1900/3/2 12:01:00
- Viewing Angle:
- 80/80/80/80
- Colors:
- 16.7M
- Outline Size:
- 184.5(H)×246.1(V) mm
- Treatment:
- Hard coating
- Brightness:
- 310 cd/m² (Typ.)
- Contrast Ratio:
- 1500:1 (Typ.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 30 (Typ.)(Tr+Td)
- Best View on:
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 97% sRGB
- Mass:
- 225g (Max.)
- Used for:
- Pad & Tablet
- Touch Screen:
- In-Cell Touch
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |

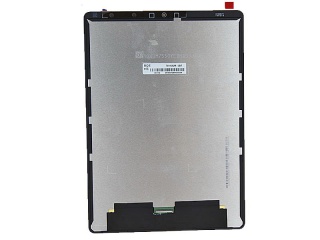

| Part Number | TV110XUM-LB0-1SP0 | TV110XUM-LZ3-1QP0 |
| Manufacturer | BOE | BOE |
| Panel Size | 11" | 11" |
| TNVAIPS | IPS | IPS |
| Resolution | 1600×2176 | 1600×2176 |
| CR | 1900/3/2 12:01:00 | 1900/3/2 12:01:00 |
| Viewing Angle | 80/80/80/80 | 80/80/80/80 |
| Colors | 16.7M | 16.7M |
| Outline Size | 177.16(W)×245.96(H) mm | 184.5(H)×246.1(V) mm |
| Treatment | Hard coating | Hard coating |
| Brightness | 280 cd/m² (Min.) | 310 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 30 (Typ.)(Tr+Td) | 30 (Typ.)(Tr+Td) |
| Best View on | Symmetry | |
| Work Mode | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 16.7M 100% sRGB | 16.7M 97% sRGB |
| Mass | 225g (Max.) | 225g (Max.) |
| Used for | Pad & Tablet | Pad & Tablet |
| Touch Screen | In-Cell Touch | In-Cell Touch |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
