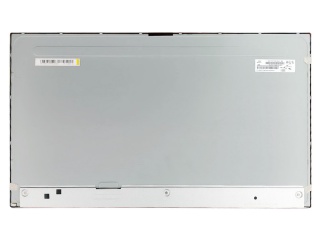

BOE MV270FHM-N20

Name: MV270FHM-N20
Brand: BOE
SKU: MV270FHM-N20
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: MV270FHM-N20

Manufacturer:: BOE

Category:: TFT-LCD Panel

Package:

Description:: BOE 27" IPS LCM 1920×1080 300nits WLED LVDS 30pins 75Hz

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

MV270FHM-N20 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: BOE

Panel Size:: 27"

TNVAIPS:: IPS

Resolution:: 1920×1080

CR:: 1900/2/10 16:01:00

Viewing Angle:: 89/89/89/89

Colors:: 16.7M

Outline Size:: 611.5(W)×355.8(H) ×13.5(D) mm

Treatment:: Antiglare (Haze 25%), Hard coating (3H)

Brightness:: 300 cd/m² (Typ.)

Contrast Ratio:: 1000:1 (Typ.) (TM)

View Direction:

Viewing Angle:: 89/89/89/89 (Typ.)(CR≥10)

Response Time:: 14 (Typ.)(G to G)

Best View on:: Symmetry

Work Mode:: ADS, Normally Black, Transmissive

Glass Thickness:

Transmissivity:

Color Depth:: 16.7M 99% sRGB

Mass:: 3.49Kgs

Used for:

Touch Screen:: Without

Refresh Rate:: 75Hz

Part Number	MV270FHM-N20	MV270FHM-N42	MV270FHM-N30	MV270FHM-N40	MV270FHM-NX4
Manufacturer	BOE	BOE	BOE	BOE	BOE
Panel Size	27"	27"	27"	27"	27"
TNVAIPS	IPS	IPS	IPS	IPS	IPS
Resolution	1920×1080	1920×1080	1920×1080	1920×1080	1920×1080
CR	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/3/2 12:01:00
Viewing Angle	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89
Colors	16.7M	16.7M	16.7M	16.7M	16.7M
Outline Size	611.5(W)×355.8(H) ×13.5(D) mm	607.1(W)×354.1(H) ×13.1(D) mm	607.1(W)×354.1(H)×13.2(D) mm	607.1(W)×354.1(H) ×13.1(D) mm	607.1 × 350.6 (H×V×D)
Treatment	Antiglare (Haze 25%), Hard coating (3H)		Antiglare, Hard coating (3H)		Antiglare (Haze 25%), Hard coating (3H)
Brightness	300 cd/m² (Typ.)	300 cd/m² (Typ.)	250 cd/m² (Typ.)	300 cd/m² (Typ.)	300 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)		1000:1 (Typ.) (TM)		1500 : 1 (Typ.) (TM)
View Direction			Symmetry
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time	14 (Typ.)(G to G)		14 (Typ.)(G to G)		14 (Typ.)(G to G) ms
Best View on	Symmetry	Symmetry		Symmetry	Symmetry
Work Mode	ADS, Normally Black, Transmissive		ADS, Normally Black, Transmissive		ADS, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	16.7M 99% sRGB	16.7M 99% sRGB	16.7M 99% sRGB	16.7M 72% NTSC	16.7M 99% sRGB
Mass	3.49Kgs	3.10Kgs (Typ.)	3.20Kgs (Typ.)	TBD	2.71Kgs (Typ.)
Used for			Desktop Monitor		Desktop Monitor
Touch Screen	Without		Without		Without
Refresh Rate	75Hz	75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	75Hz	75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	100Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
