BOE DV150X0M-N10
- Part No.:
- DV150X0M-N10
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 15" IPS LCM 1024×768 350nits WLED LVDS 20pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
DV150X0M-N10 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 15"
- TNVAIPS:
- IPS
- Resolution:
- 1024×768
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- 326.5(W)×253.5(H) ×10(D) mm
- Treatment:
- Antiglare (Haze 25%), Hard coating (3H)
- Brightness:
- 350 cd/m² (Typ.)
- Contrast Ratio:
- 1000:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10)
- Response Time:
- 30 (Typ.)(Tr+Td)
- Best View on:
- Symmetry
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 72% NTSC
- Mass:
- 930g
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
 |
 |

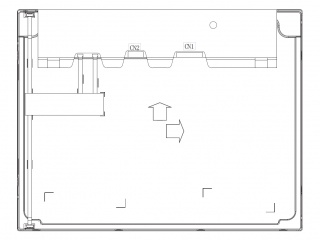

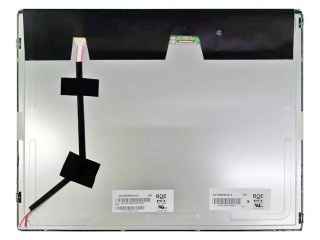

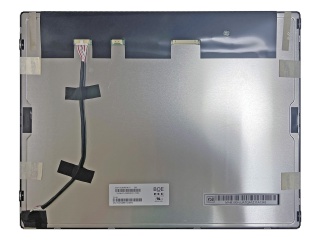

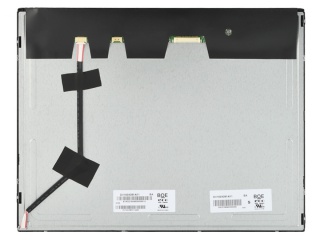

| Part Number | DV150X0M-N10 | DV150X0M-N12 | DV150X0M-N16 | DV150X0M-N11 | DV150X0M-N17 |
| Manufacturer | BOE | BOE | BOE | BOE | BOE |
| Panel Size | 15" | 15" | 15" | 15" | 15" |
| TNVAIPS | IPS | IPS | IPS | IPS | IPS |
| Resolution | 1024×768 | 1024×768 | 1024×768 | 1024×768 | 1024×768 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.7M | 16.7M | 16.7M | 262K | 16.7M |
| Outline Size | 326.5(W)×253.5(H) ×10(D) mm | 326.5(W)×253.5(H)×10(D) mm | 326.5(W)×253.5(H)×10.4(D) mm | 326.5(W)×253.5(H) ×10(D) mm | 326.5(W)×253.5(H)×12.9(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%) |
| Brightness | 350 cd/m² (Typ.) | 350 cd/m² (Typ.) | 600 cd/m² (Typ.) | 350 cd/m² (Typ.) | 1500 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry | Symmetry | Symmetry | ||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 30 (Typ.)(Tr+Td) | 30 (Typ.)(Tr+Td) | 30 (Typ.)(Tr+Td) | 30 (Typ.)(Tr+Td) | 14 (Typ.)(G to G) |
| Best View on | Symmetry | Symmetry | |||
| Work Mode | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | HADS, Normally Black, Transmissive |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 16.7M 72% NTSC | 16.7M 72% NTSC | 16.7M 72% NTSC | 262K 72% NTSC | 16.7M 72% NTSC |
| Mass | 930g | 930g | 730g | 930g | 800g |
| Used for | Industrial; Digital Signage | Industrial | Industrial; Outdoor High Brightness | ||
| Touch Screen | Without | Without | Without | Without | Without |
| Refresh Rate | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz |
