Innolux G070ACE-L01

Name: G070ACE-L01
Brand: Innolux
SKU: G070ACE-L01
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: G070ACE-L01

Manufacturer:: Innolux

Category:: TFT-LCD Panel

Package:

Description:: Innolux 7" IPS LCM 800×480 500nits WLED LVDS 30pins

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

G070ACE-L01 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Innolux

Panel Size:: 7"

TNVAIPS:: IPS

Resolution:: 800×480

CR:: 1900/2/2 8:01:00

Viewing Angle:: 89/89/89/89

Colors:: 262K/16.7M

Outline Size:: 170(W)×110(H)×8.85(D)

Treatment:: Antiglare, Hard coating (3H)

Brightness:: 500 (Typ.)(cd/m²)

Contrast Ratio:: 800 : 1 (Typ.) (TM)

View Direction:

Viewing Angle:: 89/89/89/89 (Typ.)(CR≥10)

Response Time:: 13/12 (Typ.)(Tr/Td) ms

Best View on:: Symmetry

Work Mode:: AAS, Normally Black, Transmissive

Glass Thickness:

Transmissivity:

Color Depth:: 262K/16.7M 70% NTSC

Mass:: 183±9g

Used for:

Touch Screen:: Without

Refresh Rate:: 60Hz

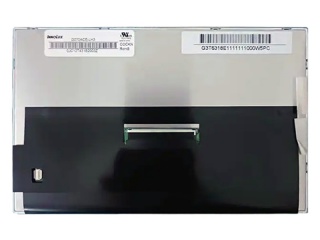

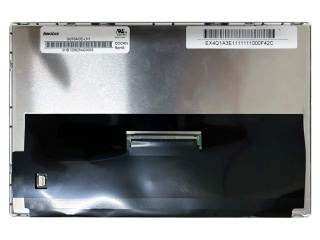

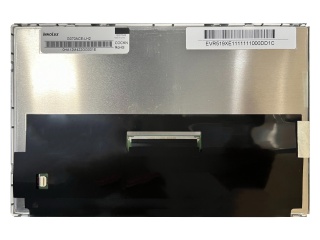

Part Number	G070ACE-L01	G070ACE-LH1	G070ACE-LH3	G070ACE-LH2
Manufacturer	Innolux	Innolux	Innolux	Innolux
Panel Size	7"	7"	7"	7"
TNVAIPS	IPS	IPS	IPS	IPS
Resolution	800×480	800×480	800×480	800×480
CR	1900/2/2 8:01:00	1900/2/2 8:01:00	1900/2/2 8:01:00	1900/2/2 8:01:00
Viewing Angle	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89
Colors	262K/16.7M	262K/16.7M	262K/16.7M	262K/16.7M
Outline Size	170(W)×110(H)×8.85(D)	170(W)×110(H) ×8.85(D) mm	165(W)×104(H)×8.85(D) mm	170(W)×110(H) ×9.35(D) mm
Treatment	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)		Antiglare, Hard coating (3H)
Brightness	500 (Typ.)(cd/m²)	1000 cd/m² (Typ.)	500 cd/m² (Typ.)	500 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)	800:1 (Typ.) (TM)		800:1 (Typ.) (TM)
View Direction
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time	13/12 (Typ.)(Tr/Td) ms	13/12 (Typ.)(Tr/Td)		13/12 (Typ.)(Tr/Td)
Best View on	Symmetry	Symmetry	Symmetry	Symmetry
Work Mode	AAS, Normally Black, Transmissive	AAS, Normally Black, Transmissive		AAS, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	262K/16.7M 70% NTSC	262K/16.7M 59% NTSC	262K/16.7M 60% NTSC	262K/16.7M
Mass	183±9g	183±9g	152/158g (Typ./Max.)	183±9g
Used for		Industrial; Outdoor High Brightness		Industrial
Touch Screen	Without	Without		Without
Refresh Rate	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
