AUO M170ETN01.1
- Part No.:
- M170ETN01.1
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 17" TN LCM 1280×1024 250nits WLED LVDS 30pins 75Hz
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
M170ETN01.1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 17"
- TNVAIPS:
- TN
- Resolution:
- 1280×1024
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 85/85/80/80
- Colors:
- 16.7M
- Outline Size:
- 358.5(W)×296.5(H)×10.8(D)
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 250 (Typ.)(cd/m²)
- Contrast Ratio:
- 1000 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 85/85/80/80 (Typ.)(CR≥10)
- Response Time:
- 3.8/1.2 (Typ.)(Tr/Td) ms
- Best View on:
- 6 o'clock
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 72% NTSC
- Mass:
- 1.27Kgs (Typ.)
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz

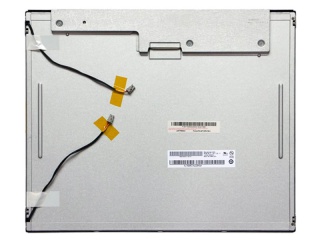

| Image |  |
 |
| Part Number | M170ETN01.1 | M170ETN01.0 |
| Manufacturer | AUO | AUO |
| Panel Size | 17" | 17" |
| TNVAIPS | TN | TN |
| Resolution | 1280×1024 | 1280×1024 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 85/85/80/80 | 85/85/80/80 |
| Colors | 16.7M | 16.7M |
| Outline Size | 358.5(W)×296.5(H)×10.8(D) | 358.5(W)×296.5(H) ×15.8(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) |
| Brightness | 250 (Typ.)(cd/m²) | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) | 1000:1 (Typ.) (TM) |
| View Direction | ||
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | 85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 3.8/1.2 (Typ.)(Tr/Td) ms | 3.5/1.5 (Typ.)(Tr/Td) |
| Best View on | 6 o'clock | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 16.7M 72% NTSC | 16.7M 74% NTSC |
| Mass | 1.27Kgs (Typ.) | 1.85Kgs (Typ.) |
| Used for | Desktop Monitor | |
| Touch Screen | Without | Without |
| Refresh Rate | 75Hz | 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
