BOE TV110WUM-LW0-58P1
- Part No.:
- TV110WUM-LW0-58P1
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 11" IPS Assembly 1200×1920 WLED MIPI 90Hz In-Cell Touch
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
TV110WUM-LW0-58P1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 11"
- TNVAIPS:
- IPS
- Resolution:
- 1200×1920
- CR:
- 1900/3/2 12:01:00
- Viewing Angle:
- 85/85/85/85
- Colors:
- 16.7M
- Outline Size:
- Treatment:
- Brightness:
- -
- Contrast Ratio:
- 1500:1 (Typ.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 25 (Max.)(Tr+Td)
- Best View on:
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M
- Mass:
- -
- Used for:
- Pad & Tablet
- Touch Screen:
- In-Cell Touch, SPI
- Refresh Rate:
- 90Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |

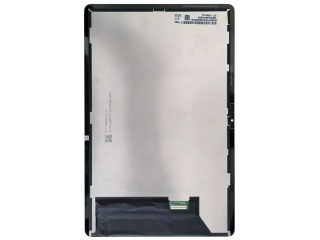

| Part Number | TV110WUM-LM0 | TV110WUM-LL0 | TV110WUM-LW0-58P1 |
| Manufacturer | BOE | BOE | BOE |
| Panel Size | 11" | 11" | 11" |
| TNVAIPS | IPS | IPS | IPS |
| Resolution | 1200×1920 | 1200×1920 | 1200×1920 |
| CR | 1900/3/2 12:01:00 | 1900/3/2 12:01:00 | 1900/3/2 12:01:00 |
| Viewing Angle | 88/88/88/88 | 85/85/85/85 | 85/85/85/85 |
| Colors | 16.7M | 16.7M | 16.7M |
| Outline Size | 163.62(W)×251.82(H) mm | 162.92(W)×251.37(H) mm | |
| Treatment | Hard coating | Clear | |
| Brightness | 400 cd/m² (Typ.) | 400 cd/m² (Typ.) | - |
| Contrast Ratio | 1500:1 (Typ.) (TM) | 1500:1 (Typ.) (TM) | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry | ||
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 25 (Max.)(Tr+Td) | 25 (Max.)(Tr+Td) | 25 (Max.)(Tr+Td) |
| Best View on | Symmetry | Symmetry | |
| Work Mode | - | - | ADS, Normally Black, Transmissive |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 16.7M 70% NTSC | 16.7M 72% NTSC | 16.7M |
| Mass | 189g (Max.) | 205g (Max.) | - |
| Used for | Pad & Tablet | Pad & Tablet | |
| Touch Screen | In-Cell Touch, SPI | In-Cell Touch, SPI | In-Cell Touch, SPI |
| Refresh Rate | 90Hz | 90Hz | 90Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
