Tianma TM104SDHG30-02
- Part No.:
- TM104SDHG30-02
- Manufacturer:
- Tianma
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Tianma 10.4" TN LCM 800×600 350nits WLED TTL 60pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
TM104SDHG30-02 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tianma
- Panel Size:
- 10.4"
- TNVAIPS:
- TN
- Resolution:
- 800×600
- CR:
- 1900/1/20 20:01:00
- Viewing Angle:
- 70/70/60/70
- Colors:
- 16.7M
- Outline Size:
- 228.4(W)×175.4(H)×6.5(D)
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 350 (Typ.)(cd/m²)
- Contrast Ratio:
- 500 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 70/70/60/70 (Typ.)(CR≥10)
- Response Time:
- 25 (Typ.)(Tr+Td) ms
- Best View on:
- 6 o'clock
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 50% NTSC
- Mass:
- 341g
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz

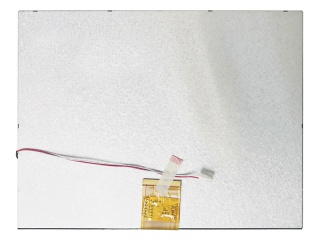

| Image |  |
 |
 |
| Part Number | TM104SDHG30-02 | TM104SDHG30-00 | TM104SDHG30-01 |
| Manufacturer | Tianma | Tianma | Tianma |
| Panel Size | 10.4" | 10.4" | 10.4" |
| TNVAIPS | TN | TN | TN |
| Resolution | 800×600 | 800×600 | 800×600 |
| CR | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 |
| Viewing Angle | 70/70/60/70 | 70/70/60/70 | 70/70/60/70 |
| Colors | 16.7M | 262K/16.7M | 262K/16.7M |
| Outline Size | 228.4(W)×175.4(H)×6.5(D) | 228.4(H)×175.4(V) ×6.5(D) mm | 228.4(W)×175.4(H) ×6.5(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) |
| Brightness | 350 (Typ.)(cd/m²) | 350 cd/m² (Typ.) | 350 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) | 500:1 (Typ.) (TM) | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock | ||
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | 70/70/60/70 (Typ.)(CR≥10) (Left / Right / Up / Down) | 70/70/60/70 (Typ.)(CR≥10) |
| Response Time | 25 (Typ.)(Tr+Td) ms | 10/15 (Typ.)(Tr/Td) | 10/15 (Typ.)(Tr/Td) |
| Best View on | 6 o'clock | 6 o'clock | |
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 16.7M 50% NTSC | 262K/16.7M 50% NTSC | 262K/16.7M 50% NTSC |
| Mass | 341g | 360g | 360g |
| Used for | Industrial | ||
| Touch Screen | Without | Without | Without |
| Refresh Rate | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
