Tianma TM097TDH02-20

Name: TM097TDH02-20
Brand: Tianma
SKU: TM097TDH02-20
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: TM097TDH02-20

Manufacturer:: Tianma

Category:: TFT-LCD Panel

Package:

Description:: Tianma 9.7" TN LCM 1024×768 WLED LVDS 30pins

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

TM097TDH02-20 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Tianma

Panel Size:: 9.7"

TNVAIPS:: TN

Resolution:: 1024×768

CR:: 1900/1/20 20:01:00

Viewing Angle:: 70/60/70/70

Colors:: 262K

Outline Size:: 210.21(W)×166.3(H) ×5.85(D) mm

Treatment:

Brightness:: -

Contrast Ratio:

View Direction:

Viewing Angle:: 70/60/70/70 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:

Best View on:: 9 o'clock

Work Mode:

Glass Thickness:

Transmissivity:

Color Depth:: 262K 50% NTSC

Mass:: 200g (Typ.)

Used for:

Touch Screen:

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

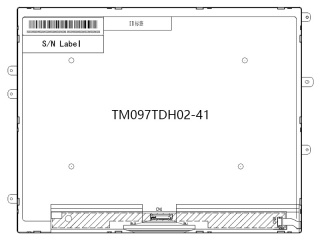

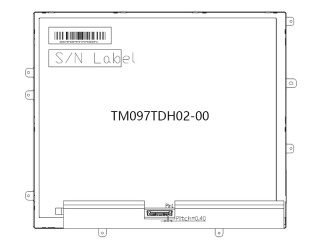

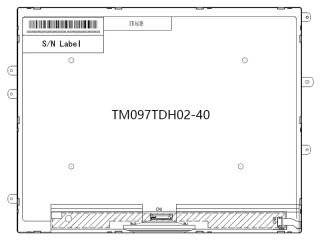

Part Number	TM097TDH02	TM097TDH02-40	TM097TDH02-41	TM097TDH02-45	TM097TDH02-20
Manufacturer	Tianma	Tianma	Tianma	Tianma	Tianma
Panel Size	9.7"	9.7"	9.7"	9.7"	9.7"
TNVAIPS	TN	TN	TN	TN	TN
Resolution	1024×768	1024×768	1024×768	1024×768	1024×768
CR	1900/1/20 20:01:00	1900/1/20 20:01:00	1900/1/20 20:01:00	1900/1/20 20:01:00	1900/1/20 20:01:00
Viewing Angle	70/60/70/70	70/60/70/70	70/60/70/70	70/60/70/70	70/60/70/70
Colors	262K	262K	262K	262K	262K
Outline Size	210.21(W)×166.3(H) ×5.85(D) mm	210.21(W)×166.3(H) ×5.85(D) mm	210.21(W)×166.3(H)×5.85(D) mm	210.21(H)×166.3(V) ×5.57(D) mm	210.21(W)×166.3(H) ×5.85(D) mm
Treatment		Hard coating	Hard coating	Hard coating
Brightness	350 cd/m² (Typ.)	350 cd/m² (Typ.)	350 cd/m² (Typ.)	350 cd/m² (Typ.)	-
Contrast Ratio		500:1 (Typ.) (TM)	500:1 (Typ.) (TM)	500:1 (Typ.) (TM)
View Direction			9 o'clock	9 o'clock
Viewing Angle	70/60/70/70 (Typ.)(CR≥10) (Left / Right / Up / Down)	70/60/70/70 (Typ.)(CR≥10)	70/60/70/70 (Typ.)(CR≥10)	70/60/70/70 (Typ.)(CR≥10) (Left / Right / Up / Down)	70/60/70/70 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time		20 (Typ.)(Tr+Td)	20 (Typ.)(Tr+Td)	20 (Typ.)(Tr+Td)
Best View on	9 o'clock	9 o'clock			9 o'clock
Work Mode		TN, Normally White, Transmissive	TN, Normally White, Transmissive	TN, Normally White, Transmissive
Glass Thickness
Transmissivity
Color Depth	262K 50% NTSC	262K 50% NTSC	262K 50% NTSC	262K 50% NTSC	262K 50% NTSC
Mass	200g (Typ.)	200g (Typ.)	200g (Typ.)	200g (Typ.)	200g (Typ.)
Used for				Pad & Tablet
Touch Screen		Without	Without	Without
Refresh Rate	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
