Tianma TM080SDH01-41
- Part No.:
- TM080SDH01-41
- Manufacturer:
- Tianma
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Tianma 8" TN LCM 800×600 250nits WLED TTL 50pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
TM080SDH01-41 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tianma
- Panel Size:
- 8"
- TNVAIPS:
- TN
- Resolution:
- 800×600
- CR:
- 1900/2/2 8:01:00
- Viewing Angle:
- 70/70/60/70
- Colors:
- 262K/16.7M
- Outline Size:
- 183 × 141 × 5.9 (H×V×D)
- Treatment:
- Antiglare
- Brightness:
- 250 cd/m² (Typ.)
- Contrast Ratio:
- 800 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 70/70/60/70 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 20 (Typ.)(Tr+Td) ms
- Best View on:
- 6 o'clock
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.7M 50% NTSC
- Mass:
- 225g
- Used for:
- Industrial
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |

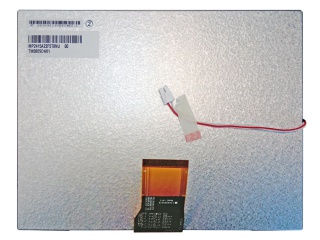

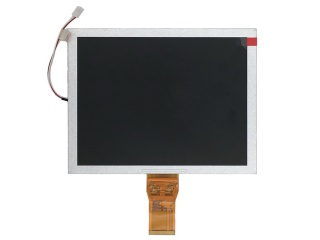

| Part Number | TM080SDH01-41 | TM080SDH01-00 | TM080SDH01-20 |
| Manufacturer | Tianma | Tianma | Tianma |
| Panel Size | 8" | 8" | 8" |
| TNVAIPS | TN | TN | TN |
| Resolution | 800×600 | 800×600 | 800×600 |
| CR | 1900/2/2 8:01:00 | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 |
| Viewing Angle | 70/70/60/70 | 70/70/50/70 | 70/70/50/70 |
| Colors | 262K/16.7M | 262K/16.7M | 262K/16.7M |
| Outline Size | 183 × 141 × 5.9 (H×V×D) | 183(W)×141(H)×5.9(D) | 183(H)×141(V) ×5.9(D) mm |
| Treatment | Antiglare | Antiglare | Antiglare |
| Brightness | 250 cd/m² (Typ.) | 250 (Typ.)(cd/m²) | 250 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) | 500 : 1 (Typ.) (TM) | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock | ||
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) (Left / Right / Up / Down) | 70/70/50/70 (Typ.)(CR≥10) | 70/70/50/70 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 20 (Typ.)(Tr+Td) ms | 25 (Typ.)(Tr+Td) ms | 25 (Typ.)(Tr+Td) |
| Best View on | 6 o'clock | 6 o'clock | |
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 262K/16.7M 50% NTSC | 262K/16.7M 50% NTSC | 262K/16.7M 50% NTSC |
| Mass | 225g | 250g | 250g |
| Used for | Industrial | Industrial | |
| Touch Screen | Without | Without | Without |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
