Tianma TM070RDHG12-00
- Part No.:
- TM070RDHG12-00
- Manufacturer:
- Tianma
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Tianma 7" TN LCM 800×480 350nits WLED TTL 60pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
TM070RDHG12-00 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tianma
- Panel Size:
- 7"
- TNVAIPS:
- TN
- Resolution:
- 800×480
- CR:
- 1900/1/20 20:01:00
- Viewing Angle:
- 70/70/60/70
- Colors:
- 262K/16.7M
- Outline Size:
- 164.9(W)×100(H) ×6(D) mm
- Treatment:
- Antiglare
- Brightness:
- 350 cd/m² (Typ.)
- Contrast Ratio:
- 500:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 70/70/60/70 (Typ.)(CR≥10)
- Response Time:
- 20 (Typ.)(Tr+Td)
- Best View on:
- 6 o'clock
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.7M 50% NTSC
- Mass:
- 165g (Typ.)
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz

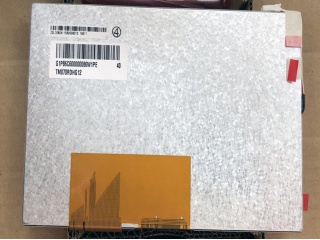

| Image |  |
 |
| Part Number | TM070RDHG12-40 | TM070RDHG12-00 |
| Manufacturer | Tianma | Tianma |
| Panel Size | 7" | 7" |
| TNVAIPS | TN | TN |
| Resolution | 800×480 | 800×480 |
| CR | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 |
| Viewing Angle | 70/70/60/70 | 70/70/60/70 |
| Colors | 262K/16.7M | 262K/16.7M |
| Outline Size | 164.9(W)×100(H) ×6(D) mm | 164.9(W)×100(H) ×6(D) mm |
| Treatment | Antiglare | Antiglare |
| Brightness | 350 cd/m² (Typ.) | 350 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) | 500:1 (Typ.) (TM) |
| View Direction | ||
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) (Left / Right / Up / Down) | 70/70/60/70 (Typ.)(CR≥10) |
| Response Time | 20 (Typ.)(Tr+Td) | 20 (Typ.)(Tr+Td) |
| Best View on | 6 o'clock | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 262K/16.7M 50% NTSC | 262K/16.7M 50% NTSC |
| Mass | 165g (Typ.) | 165g (Typ.) |
| Used for | Digital Photo Frame; Portable DVD Player | |
| Touch Screen | Without | Without |
| Refresh Rate | 60Hz | 60Hz |
