Tianma TM070JDHG30-00
- Part No.:
- TM070JDHG30-00
- Manufacturer:
- Tianma
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Tianma 7" IPS LCM 1280×800 400nits WLED LVDS 40pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
TM070JDHG30-00 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tianma
- Panel Size:
- 7"
- TNVAIPS:
- IPS
- Resolution:
- 1280×800
- CR:
- 1900/2/2 8:01:00
- Viewing Angle:
- 88/88/88/88
- Colors:
- 16.7M
- Outline Size:
- 161(W)×107(H) ×4.95(D) mm
- Treatment:
- Hard coating (3H)
- Brightness:
- 400 cd/m² (Typ.)
- Contrast Ratio:
- 800:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 88/88/88/88 (Typ.)(CR≥10)
- Response Time:
- 35 (Typ.)(Tr+Td)
- Best View on:
- Symmetry
- Work Mode:
- SFT, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 50% NTSC
- Mass:
- 120g (Typ.)
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz

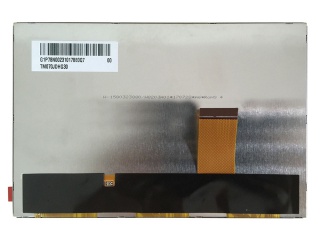

| Image |  |
 |
| Part Number | TM070JDHG30-00 | TM070JDHG30-03 |
| Manufacturer | Tianma | Tianma |
| Panel Size | 7" | 7" |
| TNVAIPS | IPS | IPS |
| Resolution | 1280×800 | 1280×800 |
| CR | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 |
| Viewing Angle | 88/88/88/88 | 88/88/88/88 |
| Colors | 16.7M | 16.7M |
| Outline Size | 161(W)×107(H) ×4.95(D) mm | 161(H)×107(V) ×4.95(D) mm |
| Treatment | Hard coating (3H) | |
| Brightness | 400 cd/m² (Typ.) | 400 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) | |
| View Direction | Symmetry | |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | 88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 35 (Typ.)(Tr+Td) | |
| Best View on | Symmetry | |
| Work Mode | SFT, Normally Black, Transmissive | |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 16.7M 50% NTSC | 16.7M 50% NTSC |
| Mass | 120g (Typ.) | 120g (Typ.) |
| Used for | ||
| Touch Screen | Without | |
| Refresh Rate | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
