Tianma TM057KDH01-00
- Part No.:
- TM057KDH01-00
- Manufacturer:
- Tianma
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Tianma 5.7" TN LCM 320×240 400nits WLED TTL 33pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
TM057KDH01-00 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tianma
- Panel Size:
- 5.7"
- TNVAIPS:
- TN
- Resolution:
- 320×240
- CR:
- 1900/1/20 20:01:00
- Viewing Angle:
- 70/70/70/60
- Colors:
- 262K
- Outline Size:
- 144(W)×104.6(H) ×12.8(D) mm
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 400 cd/m² (Typ.)
- Contrast Ratio:
- 500:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 70/70/70/60 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 20 (Typ.)(Tr+Td)
- Best View on:
- 12 o'clock
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K 50% NTSC
- Mass:
- 160g (Typ.)
- Used for:
- Industrial
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |
 |

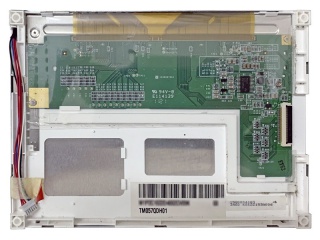

| Part Number | TM057KDH01-00 | TM057KDH01-41 | TM057KDH01-10 | TM057KDH01-40 |
| Manufacturer | Tianma | Tianma | Tianma | Tianma |
| Panel Size | 5.7" | 5.7" | 5.7" | 5.7" |
| TNVAIPS | TN | TN | TN | TN |
| Resolution | 320×240 | 320×240 | 320×240 | 320×240 |
| CR | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 |
| Viewing Angle | 70/70/70/60 | 70/70/70/60 | 70/70/60/70 | |
| Colors | 262K | 262K | 262K | 262K |
| Outline Size | 144(W)×104.6(H) ×12.8(D) mm | 144(H)×104.6(V) ×12.8(D) mm | 144(W)×104.6(H) ×12.8(D) mm | |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | ||
| Brightness | 400 cd/m² (Typ.) | 400 cd/m² (Typ.) | 400 cd/m² (Typ.) | - |
| Contrast Ratio | 500:1 (Typ.) (TM) | 500:1 (Typ.) (TM) | 500 : 1 (Typ.) (TM) | |
| View Direction | 12 o'clock | |||
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) (Left / Right / Up / Down) | 70/70/70/60 (Typ.)(CR≥10) (Left / Right / Up / Down) | 70/70/60/70 (Typ.)(CR≥10) (Left / Right / Up / Down) | - |
| Response Time | 20 (Typ.)(Tr+Td) | 20 (Typ.)(Tr+Td) | 20 (Typ.)(Tr+Td) ms | |
| Best View on | 12 o'clock | 6 o'clock | - | |
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive | |
| Glass Thickness | ||||
| Transmissivity | ||||
| Color Depth | 262K 50% NTSC | 262K 50% NTSC | 262K 52% NTSC | 262K |
| Mass | 160g (Typ.) | 160g (Typ.) | 157g (Typ.) | - |
| Used for | Industrial | Industrial | Industrial | |
| Touch Screen | Without | Without | Without | |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
