Tianma TM035KDH03-79
- Part No.:
- TM035KDH03-79
- Manufacturer:
- Tianma
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Tianma 3.5" TN LCM 320×240 300nits WLED Parallel/Serial 54pins 3.3G Vibration
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
TM035KDH03-79 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tianma
- Panel Size:
- 3.5"
- TNVAIPS:
- TN
- Resolution:
- 320×240
- CR:
- 1900/1/20 20:01:00
- Viewing Angle:
- 70/70/60/70
- Colors:
- 16.7M
- Outline Size:
- 76.9 × 63.9 × 3.35 (H×V×D)
- Treatment:
- Antiglare
- Brightness:
- 300 cd/m² (Typ.)
- Contrast Ratio:
- 500 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 70/70/60/70 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 20 (Typ.)(Tr+Td) ms
- Best View on:
- 6 o'clock
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 50% NTSC
- Mass:
- 30.0g (Typ.)
- Used for:
- Handheld & PDA; Automotive Display; Digital Still Camera; Digital Video Camera
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |
 |
|

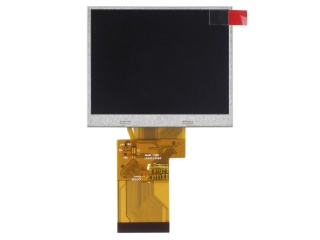

| Part Number | TM035KDH03-79 | TM035KDH03 | TM035KDH03-49 | TM035KDH03-39 | TM035KDH03-96 |
| Manufacturer | Tianma | Tianma | Tianma | Tianma | Tianma |
| Panel Size | 3.5" | 3.5" | 3.5" | 3.5" | 3.5" |
| TNVAIPS | TN | TN | TN | TN | TN |
| Resolution | 320×240 | 320×240 | 320×240 | 320×240 | 320×240 |
| CR | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 |
| Viewing Angle | 70/70/60/70 | 70/70/60/70 | 70/70/60/70 | 70/70/60/70 | 70/70/60/70 |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Outline Size | 76.9 × 63.9 × 3.35 (H×V×D) | 76.9(H)×63.9(V)×3.35(D) mm | 76.9 × 63.9 × 3.35 (H×V×D) | 76.9×63.9×3.35 (H×V×D) | 76.9 × 63.9 × 3.35 (H×V×D) |
| Treatment | Antiglare | Clear, Hard coating (3H) | Hard coating | Antiglare, Hard coating (3H) | Hard coating |
| Brightness | 300 cd/m² (Typ.) | 300 cd/m² (Typ.) | 300 cd/m² (Typ.) | 300 cd/m² (Typ.) | 300 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) | 500:1 (Typ.) (TM) | 500 : 1 (Typ.) (TM) | 500 : 1 (Typ.) (TM) | 500 : 1 (Typ.) (TM) |
| View Direction | 6 o'clock | ||||
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) (Left / Right / Up / Down) | 70/70/60/70 (Typ.)(CR≥10) (Left / Right / Up / Down) | 70/70/60/70 (Typ.)(CR≥10) (Left / Right / Up / Down) | 70/70/60/70 (Typ.)(CR≥10) (Left / Right / Up / Down) | 70/70/60/70 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 20 (Typ.)(Tr+Td) ms | 25 (Typ.)(Tr+Td) | 20 (Typ.)(Tr+Td) ms | 25 (Typ.)(Tr+Td) ms | 20 (Typ.)(Tr+Td) ms |
| Best View on | 6 o'clock | 6 o'clock | 6 o'clock | 6 o'clock | |
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 16.7M 50% NTSC | 16.7M 50% NTSC | 16.7M 60% NTSC | 16.7M 50% NTSC | 16.7M 50% NTSC |
| Mass | 30.0g (Typ.) | 30.0g (Typ.) | TBD | 29.3g (Typ.) | 29.3g (Typ.) |
| Used for | Handheld & PDA; Automotive Display; Digital Still Camera; Digital Video Camera | Handheld & PDA; Digital Still Camera; Digital Video Camera | Handheld & PDA; Digital Still Camera; Digital Video Camera | Handheld & PDA; Digital Still Camera; Digital Video Camera | Handheld & PDA; Digital Still Camera; Digital Video Camera |
| Touch Screen | Without | Without | Without | Without | Without |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
