Triad Magnetics TCT50-03E07K
- Part No.:
- TCT50-03E07K
- Manufacturer:
- Triad Magnetics
- Category:
- Power Transformers
- Package:
- Datasheet:
-
TCT50-03E07K.pdf
- Description:
- PWR XFMR LAMINATED 50VA CHAS MT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TCT50-03E07K Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Triad Magnetics
- Series:
- Class 2, TCT
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Laminated Core
- Voltage - Primary:
- 120V
- Voltage - Secondary (Full Load):
- 12V
- Current - Output (Max):
- 4.17A
- Primary Winding(s):
- Single
- Secondary Winding(s):
- Single
- Center Tap:
- No
- Power - Max:
- 50VA
- Mounting Type:
- Chassis Mount
- Termination Style:
- Wire Leads
- Size / Dimension:
- 92.46mm L x 56.67mm W
- Height - Seated (Max):
- 57.40mm
- Voltage - Isolation:
- 1500Vrms
- Weight:
- 2 lbs (907.2 g)
| Image |  |
 |
|
|
 |

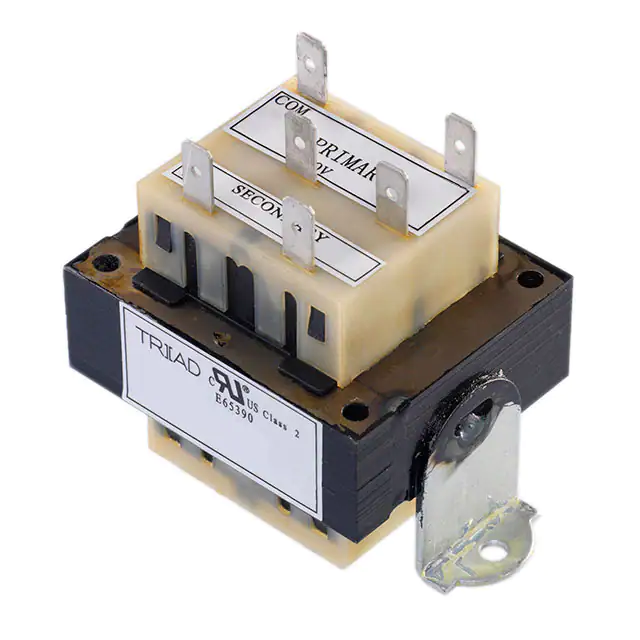

| Part Number | TCT50-08E07AB | TCT50-03E07K | TCT50-01E07AB | TCT50-05E07AB | TCT50-03E07AE |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| Series | Class 2, TCT | Class 2, TCT | Class 2, TCT | Class 2, TCT | Class 2, TCT |
| Packaging | Box | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Type | Laminated Core | Laminated Core | Laminated Core | Laminated Core | Laminated Core |
| Voltage - Primary | 120V, 240V | 120V | 120V | 120V, 208V, 240V | 120V |
| Voltage - Secondary (Full Load) | 12V | 12V | 24V | 24V | 12V |
| Current - Output (Max) | 4.17A | 4.17A | 2.08A | 2.08A | 4.17A |
| Primary Winding(s) | Single, Multiple Taps | Single | Single | Single, Multiple Taps | Single |
| Secondary Winding(s) | Single | Single | Single | Single | Single |
| Center Tap | No | No | No | No | No |
| Power - Max | 50VA | 50VA | 50VA | 50VA | 50VA |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Termination Style | Solder, Quick Connect | Wire Leads | Solder, Quick Connect | Solder, Quick Connect | Solder, Quick Connect |
| Size / Dimension | 92.46mm L x 56.67mm W | 92.46mm L x 56.67mm W | 92.46mm L x 56.67mm W | 92.46mm L x 56.67mm W | 92.46mm L x 56.67mm W |
| Height - Seated (Max) | 57.40mm | 57.40mm | 57.00mm | 57.40mm | 57.40mm |
| Voltage - Isolation | 1500Vrms | 1500Vrms | 1500Vrms | 1500Vrms | 1500Vrms |
| Weight | 2 lbs (907.2 g) | 2 lbs (907.2 g) | 2 lbs (907.2 g) | 2 lbs (907.2 g) | 2 lbs (907.2 g) |
