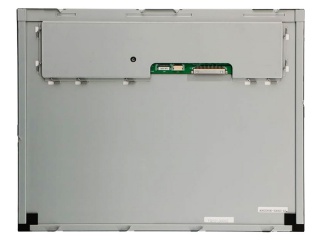

Kyocera TCG121XGLPAPNN-AN20

Name: TCG121XGLPAPNN-AN20
Brand: Kyocera
SKU: TCG121XGLPAPNN-AN20
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: TCG121XGLPAPNN-AN20

Manufacturer:: Kyocera

Category:: TFT-LCD Panel

Package:

Description:: Kyocera 12.1" IPS LCM 1024×768 400nits WLED LVDS 20pins

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

TCG121XGLPAPNN-AN20 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Kyocera

Panel Size:: 12.1"

TNVAIPS:: IPS

Resolution:: 1024×768

CR:: 1900/1/31 6:01:00

Viewing Angle:: 85/85/85/85

Colors:: 262K/16.2M

Outline Size:: 260.5 × 203.4 × 10.8 (H×V×D)

Treatment:: Antiglare

Brightness:: 400 cd/m² (Typ.)

Contrast Ratio:: 750 : 1 (Typ.) (TM)

View Direction:

Viewing Angle:: 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:: 18/12 (Typ.)(Tr/Td) ms

Best View on:: Symmetry

Work Mode:: AWV, Normally Black, Transmissive

Glass Thickness:

Transmissivity:

Color Depth:: 262K/16.2M 50% NTSC

Mass:: 670g

Used for:: Industrial

Touch Screen:: Without

Refresh Rate:: 60Hz

Part Number	TCG121XGLPAPNN-AN20	TCG121XGLPAPNN-AN20-S	TCG121XGLPAPNN-AN20-SA	TCG121XGLPAPNN-AN20-TA	TCG121XGLPAPNN-AN22-S
Manufacturer	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera
Panel Size	12.1"	12.1"	12.1"	12.1"	12.1"
TNVAIPS	IPS	IPS	IPS	IPS	IPS
Resolution	1024×768	1024×768	1024×768	1024×768	1024×768
CR	1900/1/31 6:01:00	1900/1/31 6:01:00	1900/1/31 6:01:00	1900/1/31 6:01:00	1900/1/31 6:01:00
Viewing Angle	85/85/85/85	85/85/85/85	85/85/85/85	85/85/85/85	85/85/85/85
Colors	262K/16.2M	262K/16.2M	262K/16.2M	262K/16.2M	262K/16.2M
Outline Size	260.5 × 203.4 × 10.8 (H×V×D)	260.5(W)×203.4(H)×10.8(D) mm	260.5(H)×203.4(V) ×10.8(D) mm	260.5(H)×203.4(V) ×10.8(D) mm	260.5×203.4×10.8 (H×V×D)
Treatment	Antiglare			Antiglare	Antiglare
Brightness	400 cd/m² (Typ.)	500 cd/m² (Typ.)	400 cd/m² (Typ.)	400 cd/m² (Typ.)	400 cd/m² (Typ.)
Contrast Ratio	750 : 1 (Typ.) (TM)			750:1 (Typ.) (TM)	750 : 1 (Typ.) (TM)
View Direction			Symmetry	Symmetry
Viewing Angle	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time	18/12 (Typ.)(Tr/Td) ms			18/12 (Typ.)(Tr/Td)	18/12 (Typ.)(Tr/Td) ms
Best View on	Symmetry	Symmetry			Symmetry
Work Mode	AWV, Normally Black, Transmissive			AWV, Normally Black, Transmissive	AWV, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	262K/16.2M 50% NTSC	262K/16.2M 50% NTSC	262K/16.2M 48% NTSC	262K/16.2M 50% NTSC	262K/16.2M 50% NTSC
Mass	670g	670g	670g	670g	670g
Used for	Industrial			Industrial	Industrial
Touch Screen	Without			Without	Without
Refresh Rate	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
