Kyocera TCG084SVLPAANN-AN30
- Part No.:
- TCG084SVLPAANN-AN30
- Manufacturer:
- Kyocera
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Kyocera 8.4" TN LCM 800×600 750nits WLED LVDS 30pins 70Hz
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
TCG084SVLPAANN-AN30 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kyocera
- Panel Size:
- 8.4"
- TNVAIPS:
- TN
- Resolution:
- 800×600
- CR:
- 1900/2/2 8:01:00
- Viewing Angle:
- 80/80/80/60
- Colors:
- 16.2M
- Outline Size:
- 199.5(H)×147.4(V) ×9.5(D) mm
- Treatment:
- Brightness:
- 750 cd/m² (Typ.)
- Contrast Ratio:
- View Direction:
- 6 o'clock
- Viewing Angle:
- 80/80/80/60 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- Best View on:
- Work Mode:
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.2M 51% NTSC
- Mass:
- 330g
- Used for:
- Touch Screen:
- Refresh Rate:
- 70Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |
 |
 |

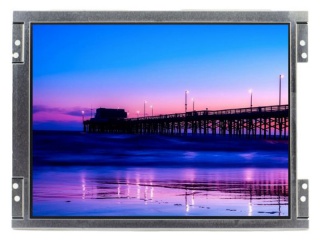

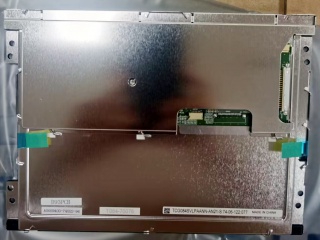

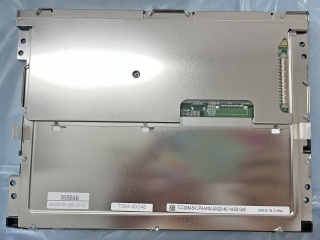

| Part Number | TCG084SVLPAANN-AN30 | TCG084SVLPAANN-AN20 | TCG084SVLPAANN-AN30-S | TCG084SVLPAANN-AN20-S | TCG084SVLPAANN-AN21-S |
| Manufacturer | Kyocera | Kyocera | Kyocera | Kyocera | Kyocera |
| Panel Size | 8.4" | 8.4" | 8.4" | 8.4" | 8.4" |
| TNVAIPS | TN | TN | TN | TN | TN |
| Resolution | 800×600 | 800×600 | 800×600 | 800×600 | 800×600 |
| CR | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 |
| Viewing Angle | 80/80/80/60 | 80/80/80/60 | 80/80/80/60 | 80/80/80/60 | 80/80/80/60 |
| Colors | 16.2M | 262K/16.7M | 16.2M | 16.2M | 16.2M |
| Outline Size | 199.5(H)×147.4(V) ×9.5(D) mm | 199.5×147.4×9.5 (H×V×D) | 199.5 × 147.4 × 9.5 (H×V×D) | 199.5(W)×147.4(H)×9.5(D) mm | 199.5(W)×147.4(H) ×9.5(D) mm |
| Treatment | Antiglare | Antiglare | Antiglare | Antiglare | |
| Brightness | 750 cd/m² (Typ.) | 400 cd/m² (Typ.) | 750 cd/m² (Typ.) | 400 cd/m² (Typ.) | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) | 800 : 1 (Typ.) (TM) | 800:1 (Typ.) (TM) | 800:1 (Typ.) (TM) | |
| View Direction | 6 o'clock | 6 o'clock | |||
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/80/60 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/80/60 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/80/60 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/80/60 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 8/22 (Typ.)(Tr/Td) ms | 8/22 (Typ.)(Tr/Td) ms | 8/22 (Typ.)(Tr/Td) | 8/22 (Typ.)(Tr/Td) | |
| Best View on | 6 o'clock | 6 o'clock | 6 o'clock | ||
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive | |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 16.2M 51% NTSC | 262K/16.7M 51% NTSC | 16.2M 51% NTSC | 16.2M 51% NTSC | 16.2M 51% NTSC |
| Mass | 330g | 315g | 330g | 315g | 315g |
| Used for | Industrial | Industrial | Industrial | Industrial | |
| Touch Screen | Without | Without | Without | Without | |
| Refresh Rate | 70Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 70Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 70Hz |
