Kyocera TCG070WVLQGPNN-AN40
- Part No.:
- TCG070WVLQGPNN-AN40
- Manufacturer:
- Kyocera
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Kyocera 7" IPS LCM 800×480 1000nits WLED LVDS 30pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
TCG070WVLQGPNN-AN40 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kyocera
- Panel Size:
- 7"
- TNVAIPS:
- IPS
- Resolution:
- 800×480
- CR:
- 1900/1/31 6:01:00
- Viewing Angle:
- 85/85/85/85
- Colors:
- 262K/16.2M
- Outline Size:
- 169.8(W)×109.7(H) ×10.2(D) mm
- Treatment:
- Antiglare
- Brightness:
- 1000 cd/m² (Typ.)
- Contrast Ratio:
- 750:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 85/85/85/85 (Typ.)(CR≥10)
- Response Time:
- 18/12 (Typ.)(Tr/Td)
- Best View on:
- Symmetry
- Work Mode:
- AWV, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.2M 50% NTSC
- Mass:
- 230g
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz

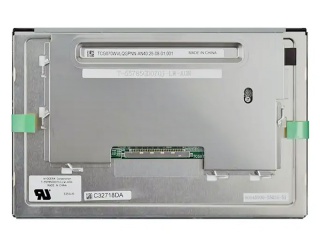

| Image |  |
 |
| Part Number | TCG070WVLQGPNN-AN40 | TCG070WVLQGPNN-AN41 |
| Manufacturer | Kyocera | Kyocera |
| Panel Size | 7" | 7" |
| TNVAIPS | IPS | IPS |
| Resolution | 800×480 | 800×480 |
| CR | 1900/1/31 6:01:00 | 1900/1/31 6:01:00 |
| Viewing Angle | 85/85/85/85 | 85/85/85/85 |
| Colors | 262K/16.2M | 262K/16.2M |
| Outline Size | 169.8(W)×109.7(H) ×10.2(D) mm | 169.8(H)×109.7(V) ×10.2(D) mm |
| Treatment | Antiglare | |
| Brightness | 1000 cd/m² (Typ.) | 1000 cd/m² (Typ.) |
| Contrast Ratio | 750:1 (Typ.) (TM) | |
| View Direction | Symmetry | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 18/12 (Typ.)(Tr/Td) | |
| Best View on | Symmetry | |
| Work Mode | AWV, Normally Black, Transmissive | |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 262K/16.2M 50% NTSC | 262K/16.2M 50% NTSC |
| Mass | 230g | 230g |
| Used for | ||
| Touch Screen | Without | |
| Refresh Rate | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
