QST QT49S-28.63636MAAE-T
- Part No.:
- QT49S-28.63636MAAE-T
- Manufacturer:
- QST
- Category:
- Crystals
- Package:
- HC-49/US
- Datasheet:
-
QT49S-28.63636MAAE-T.pdf
- Description:
- HC49 SMD MHZ QUARTZ XTAL / METAL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
QT49S-28.63636MAAE-T Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- QST
- Series:
- QT49S
- Package/Case:
- HC-49/US
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- MHz Crystal
- Frequency:
- 28.63636 MHz
- Frequency Stability:
- ±30ppm
- Frequency Tolerance:
- ±30ppm
- Load Capacitance:
- 12pF
- ESR (Equivalent Series Resistance):
- 30 Ohms
- Operating Mode:
- Fundamental
- Operating Temperature:
- -20°C ~ 70°C
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.449" L x 0.189" W (11.40mm x 4.80mm)
- Height - Seated (Max):
- -
| Image |  |
 |
|
 |
|

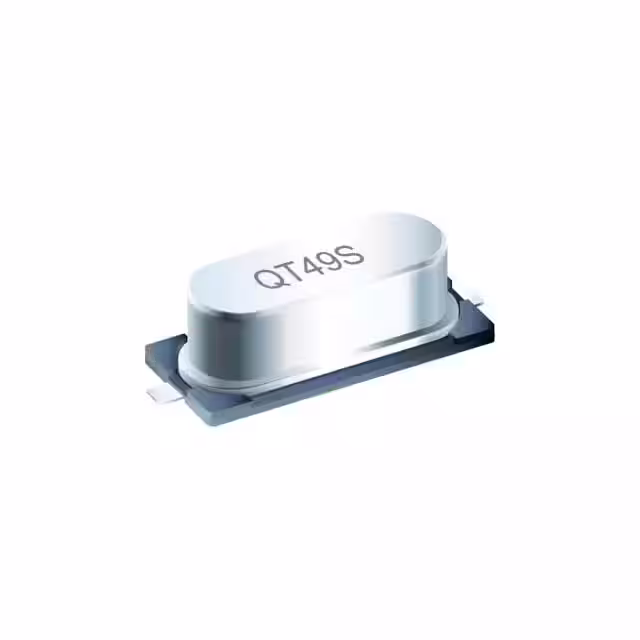

| Part Number | QT49S-28.63636MAAE-T | QT49S-13.0625MBBK-T | QT49S-25.000MAHK-T | QT49S-4.194304MBBK-T | QT49S-3.6864MAAJ-T |
| Manufacturer | QST | QST | QST | QST | QST |
| Series | QT49S | QT49S | QT49S | QT49S | QT49S |
| Package/Case | HC-49/US | HC-49/US | HC-49/US | HC-49/US | HC-49/US |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 28.63636 MHz | 13.0625 MHz | 25 MHz | 4.194304 MHz | 3.6864 MHz |
| Frequency Stability | ±30ppm | ±50ppm | ±30ppm | ±50ppm | ±30ppm |
| Frequency Tolerance | ±30ppm | ±50ppm | ±30ppm | ±50ppm | ±30ppm |
| Load Capacitance | 12pF | 20pF | 20pF | 20pF | 18pF |
| ESR (Equivalent Series Resistance) | 30 Ohms | 40 Ohms | 30 Ohms | 150 Ohms | 150 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -40°C ~ 85°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.449" L x 0.189" W (11.40mm x 4.80mm) |
| Height - Seated (Max) | - | - | - | - | - |
