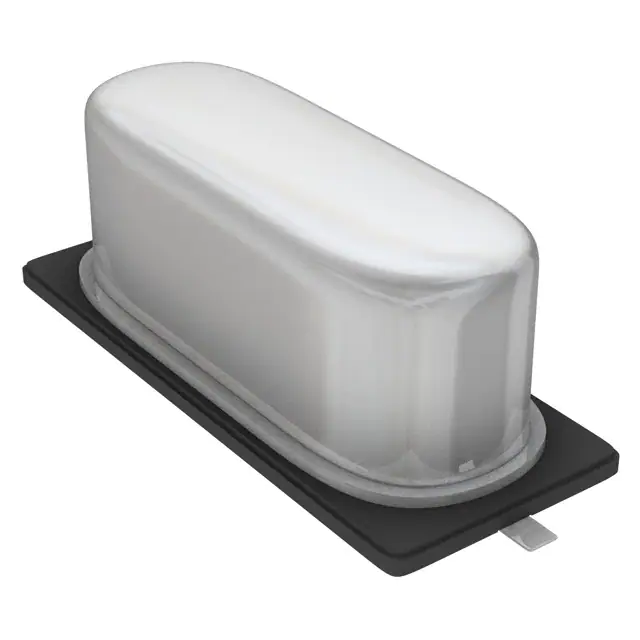

Abracon LLC ABLS-13.52127MHZ-10-J-4Q-T
- Part No.:
- ABLS-13.52127MHZ-10-J-4Q-T
- Manufacturer:
- Abracon LLC
- Category:
- Crystals
- Package:
- HC-49/US
- Datasheet:
-
ABLS-13.52127MHZ-10-J-4Q-T.pdf
- Description:
- CRYSTAL 13.52127MHZ 10PF SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ABLS-13.52127MHZ-10-J-4Q-T Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Abracon LLC
- Series:
- ABLS
- Package/Case:
- HC-49/US
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- MHz Crystal
- Frequency:
- 13.52127 MHz
- Frequency Stability:
- ±100ppm
- Frequency Tolerance:
- ±30ppm
- Load Capacitance:
- 10pF
- ESR (Equivalent Series Resistance):
- 50 Ohms
- Operating Mode:
- Fundamental
- Operating Temperature:
- -40°C ~ 105°C
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.449" L x 0.185" W (11.40mm x 4.70mm)
- Height - Seated (Max):
- 0.165" (4.20mm)
| Image |  |
|
|
 |
 |

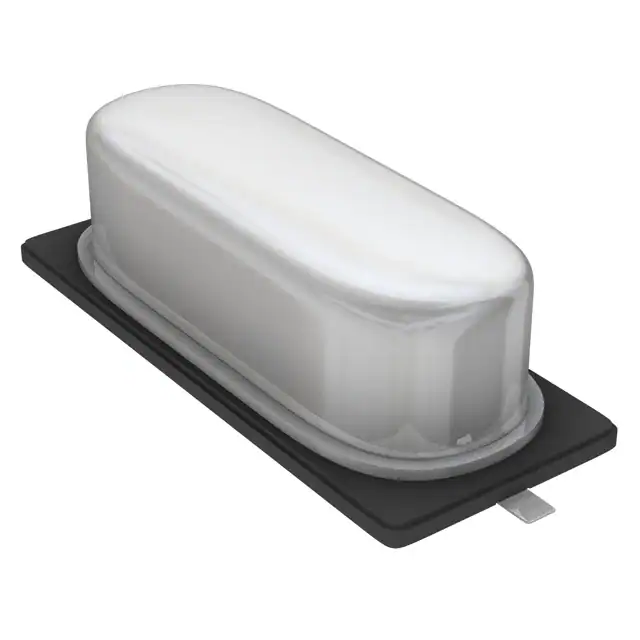

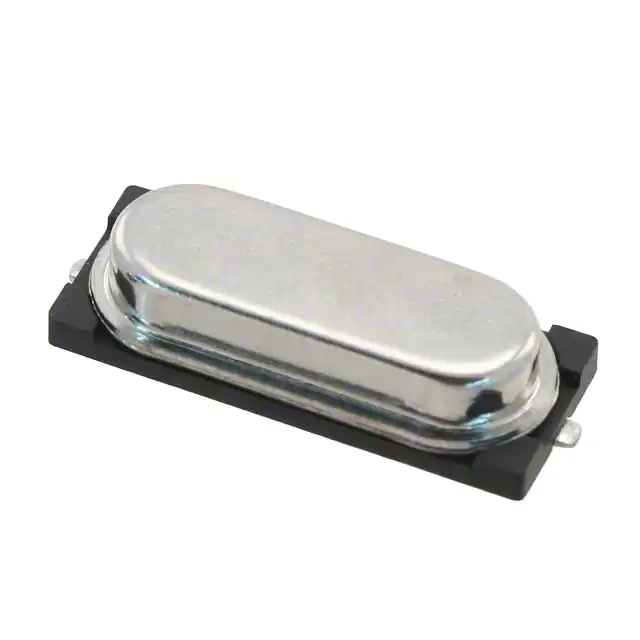

| Part Number | ABLS-8.000MHZ-B2-T | ABLS-8.000MHZ-B4-T | ABLS-13.52127MHZ-10-J-4Q-T | ABLS2-11.0592MHZ-D4Y-T | ABLS7M2-18.432MHZ-D2Y-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Series | ABLS | ABLS | ABLS | ABLS2 | ABLS7M2 |
| Package/Case | HC-49/US | HC-49/US | HC-49/US | HC-49/US | 2-SMD, Flat Lead |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 8 MHz | 8 MHz | 13.52127 MHz | 11.0592 MHz | 18.432 MHz |
| Frequency Stability | ±50ppm | ±50ppm | ±100ppm | ±30ppm | ±30ppm |
| Frequency Tolerance | ±20ppm | ±30ppm | ±30ppm | ±30ppm | ±20ppm |
| Load Capacitance | 18pF | 18pF | 10pF | 18pF | 18pF |
| ESR (Equivalent Series Resistance) | 80 Ohms | 80 Ohms | 50 Ohms | 50 Ohms | 60 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.449" L x 0.185" W (11.40mm x 4.70mm) | 0.276" L x 0.161" W (7.00mm x 4.10mm) |
| Height - Seated (Max) | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.130" (3.30mm) | 0.079" (2.00mm) |
