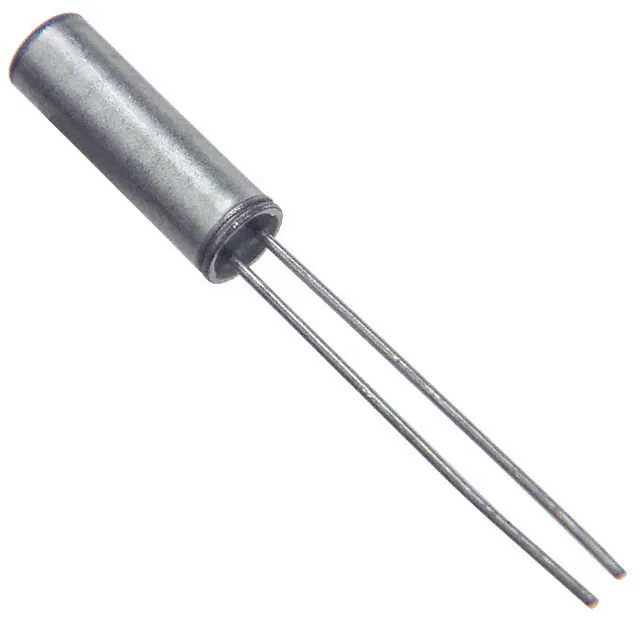

Citizen Finedevice Co Ltd CFS-20632768DZFB
- Part No.:
- CFS-20632768DZFB
- Manufacturer:
- Citizen Finedevice Co Ltd
- Category:
- Crystals
- Package:
- Cylindrical Can, Radial
- Datasheet:
-
CFS-20632768DZFB.pdf
- Description:
- CRYSTAL 32.7680KHZ 12.5PF TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CFS-20632768DZFB Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Citizen Finedevice Co Ltd
- Series:
- CFS-206
- Package/Case:
- Cylindrical Can, Radial
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- kHz Crystal (Tuning Fork)
- Frequency:
- 32.768 kHz
- Frequency Stability:
- -
- Frequency Tolerance:
- ±20ppm
- Load Capacitance:
- 12.5pF
- ESR (Equivalent Series Resistance):
- 35 kOhms
- Operating Mode:
- Fundamental
- Operating Temperature:
- -20°C ~ 70°C
- Ratings:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- -
- Size / Dimension:
- 0.075" Dia (1.90mm)
- Height - Seated (Max):
- 0.244" (6.20mm)
| Image |  |
|
|
 |
|

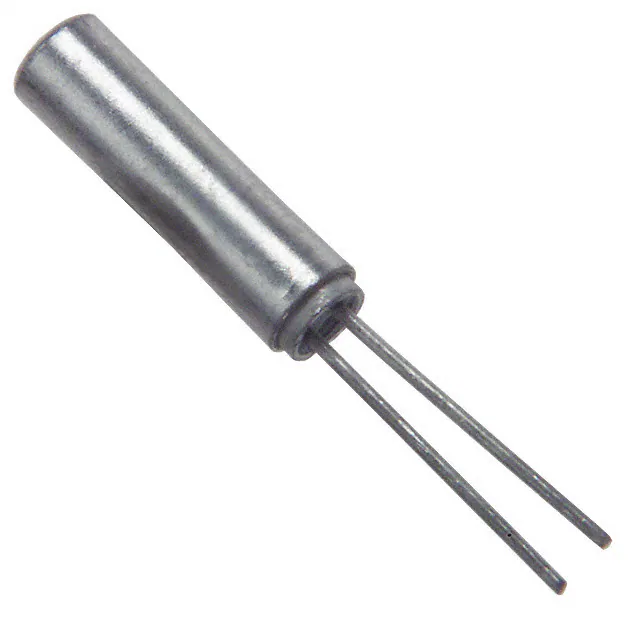

| Part Number | CFS-20632768DZBB | CFS-20632768DZFB | CFS-20632768HZFB | CFS-14532768DZFB | CFS-20632768DZYB |
| Manufacturer | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd | Citizen Finedevice Co Ltd |
| Series | CFS-206 | CFS-206 | CFS-206 | CFS145 | CFS-206 |
| Package/Case | Cylindrical Can, Radial | Cylindrical Can, Radial | Cylindrical Can, Radial | Cylindrical Can, Radial | Cylindrical Can, Radial |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Type | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) | kHz Crystal (Tuning Fork) |
| Frequency | 32.768 kHz | 32.768 kHz | 32.768 kHz | 32.768 kHz | 32.768 kHz |
| Frequency Stability | - | - | - | - | - |
| Frequency Tolerance | ±20ppm | ±20ppm | ±5ppm | ±20ppm | ±20ppm |
| Load Capacitance | 6pF | 12.5pF | 12.5pF | 12.5pF | 7pF |
| ESR (Equivalent Series Resistance) | 35 kOhms | 35 kOhms | 35 kOhms | 40 kOhms | 35 kOhms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Ratings | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.075" Dia (1.90mm) | 0.075" Dia (1.90mm) | 0.075" Dia (1.90mm) | 0.059" Dia (1.50mm) | 0.075" Dia (1.90mm) |
| Height - Seated (Max) | 0.244" (6.20mm) | 0.244" (6.20mm) | 0.244" (6.20mm) | 0.201" (5.10mm) | 0.244" (6.20mm) |
