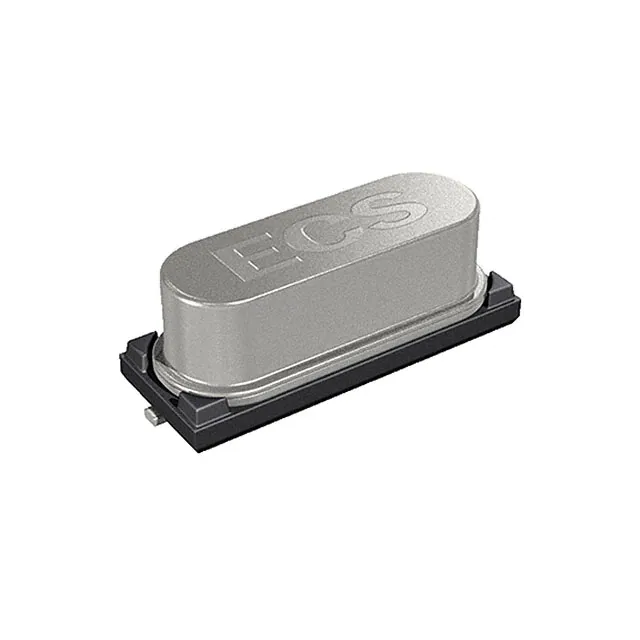

ECS Inc. ECS-250-18-5PX-F-TR
- Part No.:
- ECS-250-18-5PX-F-TR
- Manufacturer:
- ECS Inc.
- Category:
- Crystals
- Package:
- HC-49/US
- Datasheet:
-
ECS-250-18-5PX-F-TR.pdf
- Description:
- CRYSTAL 25.0000MHZ 18PF SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ECS-250-18-5PX-F-TR Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- ECS Inc.
- Series:
- CSM-7X
- Package/Case:
- HC-49/US
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- MHz Crystal
- Frequency:
- 25 MHz
- Frequency Stability:
- ±50ppm
- Frequency Tolerance:
- ±30ppm
- Load Capacitance:
- 18pF
- ESR (Equivalent Series Resistance):
- 30 Ohms
- Operating Mode:
- Fundamental
- Operating Temperature:
- -10°C ~ 70°C
- Ratings:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.449" L x 0.189" W (11.40mm x 4.80mm)
- Height - Seated (Max):
- 0.169" (4.30mm)
| Image |  |
|
 |
 |
|

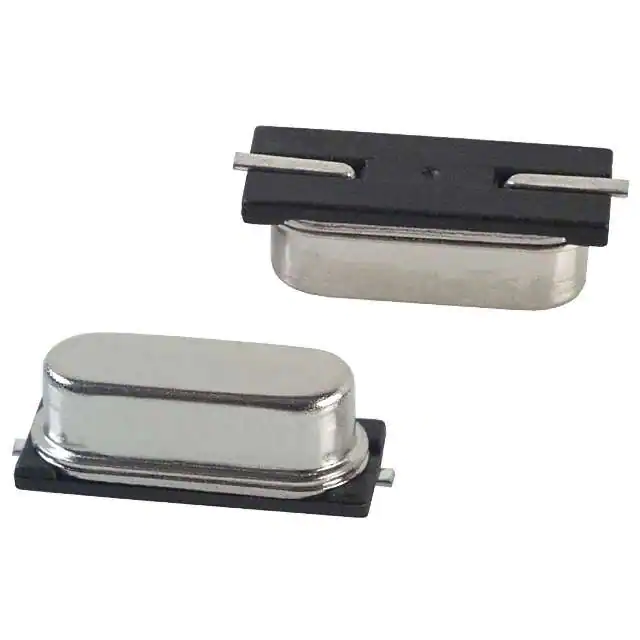

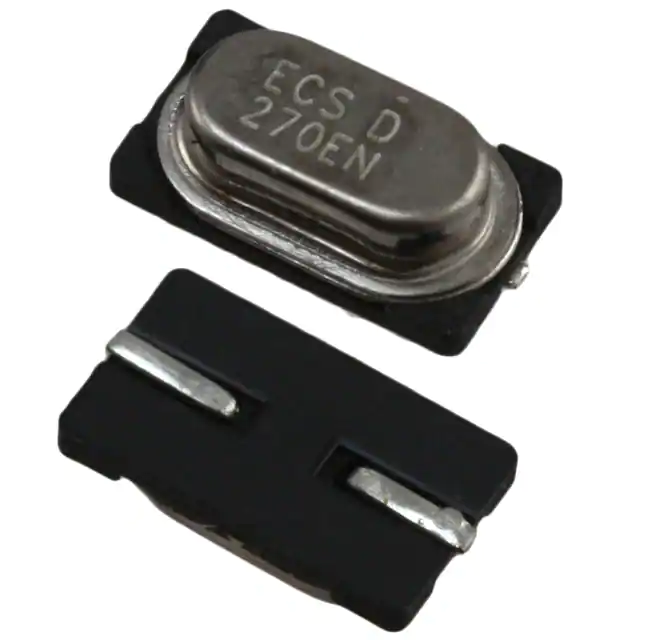

| Part Number | ECS-250-18-5PX-F-TR | ECS-240-20-5PX-TR | ECS-184-18-5PX-TR | ECS-160-20-3X-TR | ECS-80-18-5PX-TR |
| Manufacturer | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| Series | CSM-7X | CSM-7X | CSM-7X | CSM-3X | CSM-7X |
| Package/Case | HC-49/US | HC-49/US | HC-49/US | HC-49/US | HC-49/US |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 25 MHz | 24 MHz | 18.432 MHz | 16 MHz | 8 MHz |
| Frequency Stability | ±50ppm | ±50ppm | ±50ppm | ±50ppm | ±50ppm |
| Frequency Tolerance | ±30ppm | ±30ppm | ±30ppm | ±30ppm | ±30ppm |
| Load Capacitance | 18pF | 20pF | 18pF | 20pF | 18pF |
| ESR (Equivalent Series Resistance) | 30 Ohms | 30 Ohms | 40 Ohms | 50 Ohms | 60 Ohms |
| Operating Mode | Fundamental | Fundamental | Fundamental | Fundamental | Fundamental |
| Operating Temperature | -10°C ~ 70°C | -10°C ~ 70°C | -10°C ~ 70°C | -10°C ~ 70°C | -10°C ~ 70°C |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.449" L x 0.189" W (11.40mm x 4.80mm) | 0.276" L x 0.161" W (7.00mm x 4.10mm) | 0.449" L x 0.189" W (11.40mm x 4.80mm) |
| Height - Seated (Max) | 0.169" (4.30mm) | 0.169" (4.30mm) | 0.169" (4.30mm) | 0.091" (2.30mm) | 0.169" (4.30mm) |
- Include Parts
- Popular Search
The following parts include "ECS-250-18-5PX-F-TR" in Silicon Labs ECS-250-18-5PX-F-TR.
- Part Number
- Manufacturer
- Package
- Description
- CFS-20632768DZBB Citizen Finedevice Co Ltd Cylindrical Can, Radial CRYSTAL 32.7680KHZ 6PF TH
- CFS-20632768DZFB Citizen Finedevice Co Ltd Cylindrical Can, Radial CRYSTAL 32.7680KHZ 12.5PF TH
- XRCGB32M000F2P01R0 Murata Electronics 4-SMD, No Lead CRYSTAL 32.0000MHZ 8PF SMD
- ECS-250-18-5PX-F-TR ECS Inc. HC-49/US CRYSTAL 25.0000MHZ 18PF SMD
- J49SMH-A-G-G-K-4M0 Jauch Quartz HC-49/US CRYSTAL 4.0000MHZ 12PF SMD
- FC4SDCBMF8.0-T1 Fox Electronics HC-49/US CRYSTAL 8.0000MHZ 20PF SMD
- ABLS-8.000MHZ-B2-T Abracon LLC HC-49/US CRYSTAL 8.0000MHZ 18PF SMD
- ECS-240-20-5PX-TR ECS Inc. HC-49/US CRYSTAL 24.0000MHZ 20PF SMD
- ABLS-8.000MHZ-B4-T Abracon LLC HC-49/US CRYSTAL 8.0000MHZ 18PF SMD
- ABLS-13.52127MHZ-10-J-4Q-T Abracon LLC HC-49/US CRYSTAL 13.52127MHZ 10PF SMD
