Elna America PVM-10V680ME60E-R2
- Part No.:
- PVM-10V680ME60E-R2
- Manufacturer:
- Elna America
- Category:
- Aluminum - Polymer Capacitors
- Package:
- Description:
- CAP ALUM POLY 68UF 20% 10V SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PVM-10V680ME60E-R2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Elna America
- Series:
- PVM
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Type:
- Polymer
- Capacitance:
- 68 µF
- Tolerance:
- ±20%
- Voltage - Rated:
- 10 V
- ESR (Equivalent Series Resistance):
- 28mOhm
- Lifetime @ Temp.:
- 2000 Hrs @ 105°C
- Operating Temperature:
- -55°C ~ 105°C
- Ratings:
- -
- Applications:
- General Purpose
- Features:
- -
- Ripple Current @ Low Frequency:
- -
- Ripple Current @ High Frequency:
- 2.31 A @ 100 kHz
- Impedance:
- -
- Lead Spacing:
- -
- Size / Dimension:
- 0.197" Dia (5.00mm)
- Height - Seated (Max):
- 0.236" (6.00mm)
- Surface Mount Land Size:
- 0.209" L x 0.209" W (5.30mm x 5.30mm)
- Mounting Type:
- Surface Mount

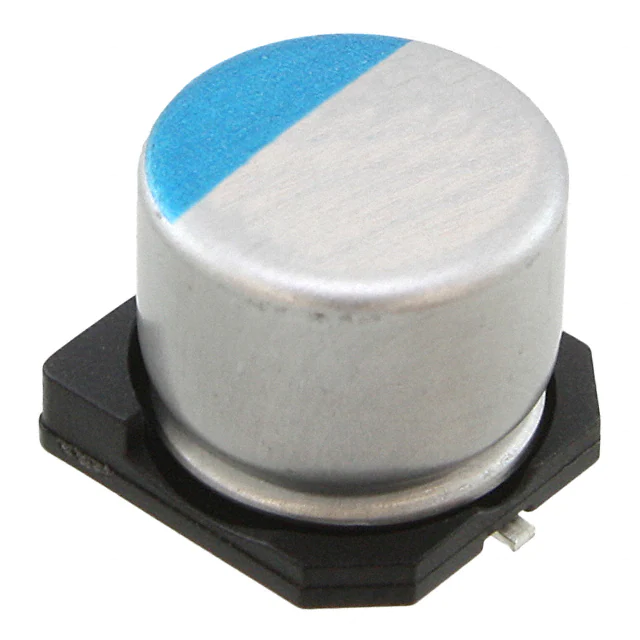

| Image |  |
|
 |
 |
|
| Part Number | PVM-10V680ME60E-R2 | PVM-10V470ME60E-R2 | PVM-16V680MF60E-R2 | PVM-10V221MG70E-R2 | PVM-10V271MG70E-R2 |
| Manufacturer | Elna America | Elna America | Elna America | Elna America | Elna America |
| Series | PVM | PVM | PVM | PVM | PVM |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Polymer | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 68 µF | 47 µF | 68 µF | 220 µF | 270 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 10 V | 16 V | 10 V | 10 V |
| ESR (Equivalent Series Resistance) | 28mOhm | 28mOhm | 28mOhm | 21mOhm | 21mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - | - |
| Ripple Current @ Low Frequency | - | - | - | - | - |
| Ripple Current @ High Frequency | 2.31 A @ 100 kHz | 2.31 A @ 100 kHz | 2.39 A @ 100 kHz | 3.22 A @ 100 kHz | 3.22 A @ 100 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
