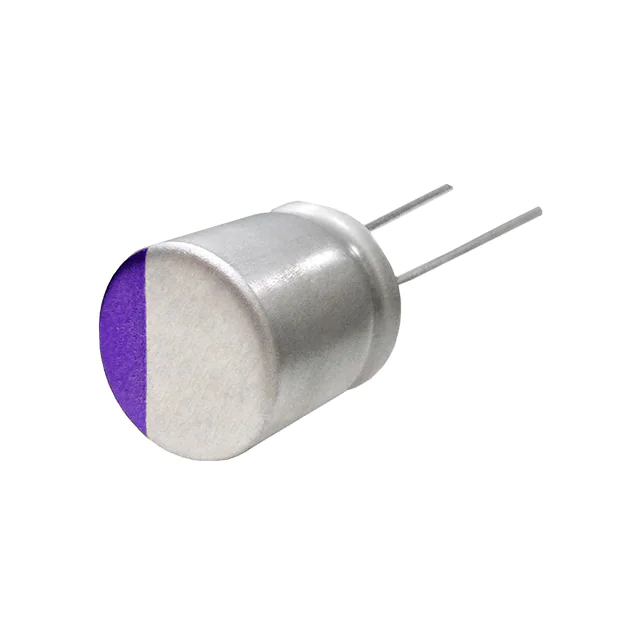

Panasonic Electronic Components 16SEPC100M+TSS
- Part No.:
- 16SEPC100M+TSS
- Manufacturer:
- Panasonic Electronic Components
- Category:
- Aluminum - Polymer Capacitors
- Package:
- Datasheet:
-
16SEPC100M+TSS.pdf
- Description:
- CAP ALUM POLY 100UF 20% 16V TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
16SEPC100M+TSS Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electronic Components
- Series:
- OS-CON™, SEPC
- Packaging:
- Cut Tape (CT)
- Product Status:
- Active
- Type:
- Polymer
- Capacitance:
- 100 µF
- Tolerance:
- ±20%
- Voltage - Rated:
- 16 V
- ESR (Equivalent Series Resistance):
- 24mOhm
- Lifetime @ Temp.:
- 5000 Hrs @ 105°C
- Operating Temperature:
- -55°C ~ 105°C
- Ratings:
- -
- Applications:
- General Purpose
- Features:
- -
- Ripple Current @ Low Frequency:
- 124.5 mA @ 120 Hz
- Ripple Current @ High Frequency:
- 2.49 A @ 100 kHz
- Impedance:
- -
- Lead Spacing:
- 0.098" (2.50mm)
- Size / Dimension:
- 0.248" Dia (6.30mm)
- Height - Seated (Max):
- 0.236" (6.00mm)
- Surface Mount Land Size:
- -
- Mounting Type:
- Through Hole
| Image |  |
|
|
|
| Part Number | 16SEPC100M+TSS | 16SEPC100MW+S | 16SEPC100MW | 16SEPC100M |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Series | OS-CON™, SEPC | OS-CON™, SEPC | OS-CON™, SEPC | OS-CON™, SEPC |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Bulk | Bulk |
| Product Status | Active | Active | Active | Active |
| Type | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 100 µF | 100 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V | 16 V | 16 V |
| ESR (Equivalent Series Resistance) | 24mOhm | 10mOhm | 10mOhm | 24mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - |
| Ripple Current @ Low Frequency | 124.5 mA @ 120 Hz | 234 mA @ 120 Hz | 234 mA @ 120 Hz | 124.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.49 A @ 100 kHz | 4.68 A @ 100 kHz | 4.68 A @ 100 kHz | 2.49 A @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.354" (9.00mm) | 0.354" (9.00mm) | 0.236" (6.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
