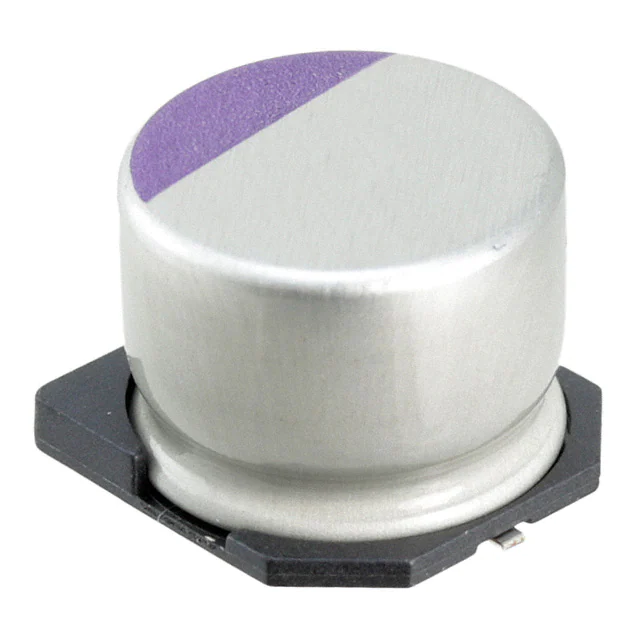

Panasonic Electronic Components 16SVP180MX

Product attributes

Attribute value

Manufacturer:

Panasonic Electronic Components

Series:

OS-CON™, SVP

Packaging:

Tape & Reel (TR)

Product Status:

Active

Type:

Polymer

Capacitance:

180 µF

Tolerance:

±20%

Voltage - Rated:

16 V

ESR (Equivalent Series Resistance):

30mOhm

Lifetime @ Temp.:

2000 Hrs @ 105°C

Operating Temperature:

-55°C ~ 105°C

Ratings:

-

Applications:

General Purpose

Features:

-

Ripple Current @ Low Frequency:

151 mA @ 120 Hz

Ripple Current @ High Frequency:

3.02 A @ 100 kHz

Impedance:

-

Lead Spacing:

-

Size / Dimension:

0.394" Dia (10.00mm)

Height - Seated (Max):

0.315" (8.00mm)

Surface Mount Land Size:

0.406" L x 0.406" W (10.30mm x 10.30mm)

Mounting Type:

Surface Mount
