Elna America PVH-16V330MF60E-R2
- Part No.:
- PVH-16V330MF60E-R2
- Manufacturer:
- Elna America
- Category:
- Aluminum - Polymer Capacitors
- Package:
- Description:
- CAP ALUM POLY 33UF 20% 16V SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PVH-16V330MF60E-R2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Elna America
- Series:
- PVH
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Type:
- Polymer
- Capacitance:
- 33 µF
- Tolerance:
- ±20%
- Voltage - Rated:
- 16 V
- ESR (Equivalent Series Resistance):
- 37mOhm
- Lifetime @ Temp.:
- 2000 Hrs @ 105°C
- Operating Temperature:
- -55°C ~ 105°C
- Ratings:
- -
- Applications:
- General Purpose
- Features:
- -
- Ripple Current @ Low Frequency:
- -
- Ripple Current @ High Frequency:
- 2.05 A @ 100 kHz
- Impedance:
- -
- Lead Spacing:
- -
- Size / Dimension:
- 0.248" Dia (6.30mm)
- Height - Seated (Max):
- 0.236" (6.00mm)
- Surface Mount Land Size:
- 0.260" L x 0.260" W (6.60mm x 6.60mm)
- Mounting Type:
- Surface Mount

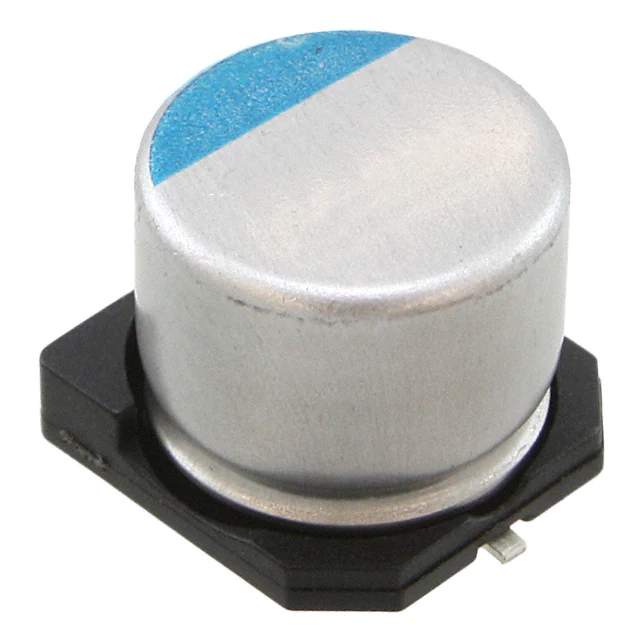

| Image |  |
|
|
|
 |
| Part Number | PVH-20V220MF60E-R2 | PVH-25V100MF60E-R2 | PVH-16V330MF60E-R2 | PVH-16V390MF60E-R2 | PVH-10V121MG70E-R2 |
| Manufacturer | Elna America | Elna America | Elna America | Elna America | Elna America |
| Series | PVH | PVH | PVH | PVH | PVH |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Polymer | Polymer | Polymer | Polymer | Polymer |
| Capacitance | 22 µF | 10 µF | 33 µF | 39 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 20 V | 25 V | 16 V | 16 V | 10 V |
| ESR (Equivalent Series Resistance) | 50mOhm | 65mOhm | 37mOhm | 37mOhm | 27mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Features | - | - | - | - | - |
| Ripple Current @ Low Frequency | - | - | - | - | - |
| Ripple Current @ High Frequency | 1.65 A @ 100 kHz | 1.5 A @ 100 kHz | 2.05 A @ 100 kHz | 2.05 A @ 100 kHz | 2.8 A @ 100 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
