BOE PV156FHM-N20

Name: PV156FHM-N20
Brand: BOE
SKU: PV156FHM-N20
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: PV156FHM-N20

Manufacturer:: BOE

Category:: TFT-LCD Panel

Package:

Description:: BOE 15.6" IPS LCM 1920×1080 400nits WLED eDP 30pins BOE0795 BOE08D1

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

PV156FHM-N20 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: BOE

Panel Size:: 15.6"

TNVAIPS:: IPS

Resolution:: 1920×1080

CR:: 1900/2/2 8:01:00

Viewing Angle:: 85/85/85/85

Colors:: 262K

Outline Size:: 359.5(W)×223.8(H) ×3.2(D) mm

Treatment:

Brightness:: 400 cd/m² (Typ.)

Contrast Ratio:

View Direction:

Viewing Angle:: 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:

Best View on:: Symmetry

Work Mode:

Glass Thickness:

Transmissivity:

Color Depth:: 262K 45% NTSC

Mass:: 350g (Max.)

Used for:

Touch Screen:

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

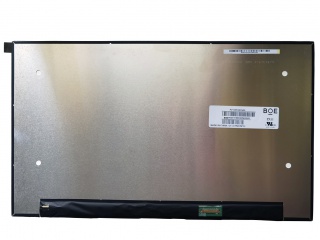

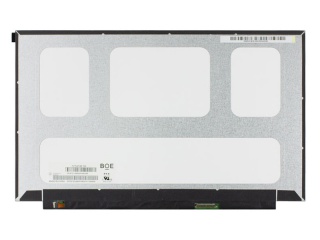

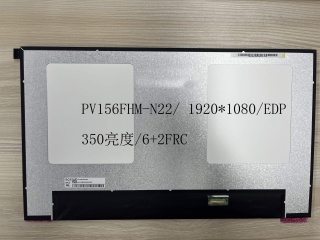

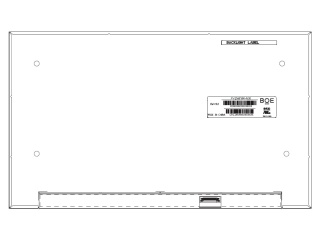

Part Number	PV156FHM-N20	PV156FHM-N30	PV156FHM-T00	PV156FHM-N31	PV156FHM-N22
Manufacturer	BOE	BOE	BOE	BOE	BOE
Panel Size	15.6"	15.6"	15.6"	15.6"	15.6"
TNVAIPS	IPS	IPS	IPS	IPS	IPS
Resolution	1920×1080	1920×1080	1920×1080	1920×1080	1920×1080
CR	1900/2/2 8:01:00	1900/2/10 16:01:00	1900/2/2 8:01:00	1900/3/2 12:01:00	1900/2/19 0:01:00
Viewing Angle	85/85/85/85	85/85/85/85	85/85/85/85	85/85/85/85	85/85/85/85
Colors	262K	16.2M	16.7M	16.2M	16.7M
Outline Size	359.5(W)×223.8(H) ×3.2(D) mm	350.66(W)×205.24(H) ×5.8(D) mm	361 × 223 × 4.65 (H×V×D)	350.66(W)×205.24(H) ×5.8(D) mm	350.66(W)×205.78(H) ×5.3(D) mm
Treatment		Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)
Brightness	400 cd/m² (Typ.)	350 cd/m² (Typ.)	400 cd/m² (Min.)	500 cd/m² (Typ.)	350 cd/m² (Typ.)
Contrast Ratio		1000:1 (Typ.) (TM)	800 : 1 (Typ.) (TM)	1500:1 (Typ.) (TM)
View Direction
Viewing Angle	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)	85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time		20 (Typ.)(Tr+Td)	30 (Typ.)(Tr+Td) ms	25 (Typ.)(Tr+Td)
Best View on	Symmetry	Symmetry	Symmetry	Symmetry	Symmetry
Work Mode		ADS, Normally Black, Transmissive	-	ADS, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	262K 45% NTSC	16.2M 45% NTSC	16.7M 45% NTSC	16.2M 45% NTSC	16.7M 45% NTSC
Mass	350g (Max.)	340g (Typ.)	670g (Max.)	340g (Typ.)	400g (Max.)
Used for		Industrial	Industrial	Industrial
Touch Screen		Without	On-Cell Touch, USB	Without
Refresh Rate	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
