Tamura PL2.5-10-130B
- Part No.:
- PL2.5-10-130B
- Manufacturer:
- Tamura
- Category:
- Power Transformers
- Package:
- Datasheet:
-
PL2.5-10-130B.pdf
- Description:
- PWR XFMR LAMINATED 2.5VA TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PL2.5-10-130B Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tamura
- Series:
- PL2.5-xx-130B
- Packaging:
- Tube
- Product Status:
- Active
- Type:
- Laminated Core
- Voltage - Primary:
- 115V, 230V
- Voltage - Secondary (Full Load):
- Parallel 5V, Series 10V
- Current - Output (Max):
- Parallel 500mA, Series 250mA
- Primary Winding(s):
- Dual
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 2.5VA
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Size / Dimension:
- 41.28mm L x 36.37mm W
- Height - Seated (Max):
- 28.60mm
- Voltage - Isolation:
- 3500Vrms
- Weight:
- -
| Image |  |
|
|
 |
|

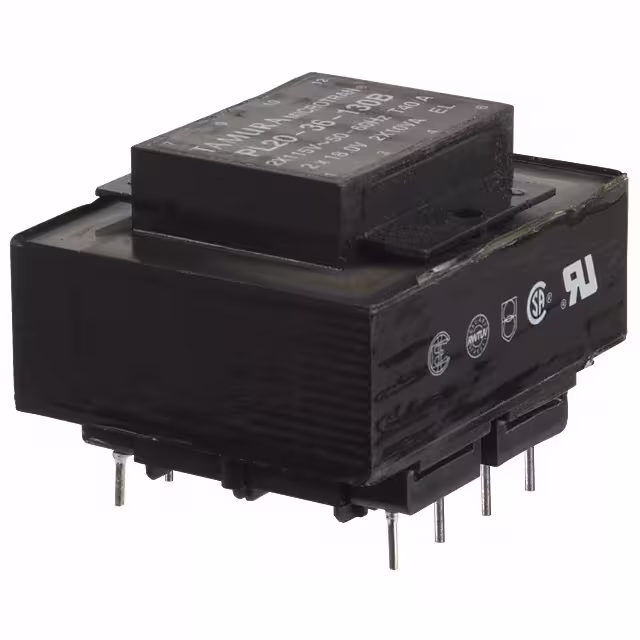

| Part Number | PL2.5-10-130B | PL2.5-16-130B | PL2.5-36-130B | PL20-28-130B | PL20-16-130B |
| Manufacturer | Tamura | Tamura | Tamura | Tamura | Tamura |
| Series | PL2.5-xx-130B | PL2.5-xx-130B | PL2.5-xx-130B | PL20-xx-130B | PL20-xx-130B |
| Packaging | Tube | Tube | Tube | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Type | Laminated Core | Laminated Core | Laminated Core | Laminated Core | Laminated Core |
| Voltage - Primary | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V | 115V, 230V |
| Voltage - Secondary (Full Load) | Parallel 5V, Series 10V | Parallel 8V, Series 16V | Parallel 18V, Series 36V | Parallel 14V, Series 28V | Parallel 8V, Series 16V |
| Current - Output (Max) | Parallel 500mA, Series 250mA | Parallel 300mA, Series 150mA | Parallel 140mA, Series 70mA | Parallel 1.44A, Series 720mA | Parallel 2.5A, Series 1.25A |
| Primary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Secondary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Center Tap | No | No | No | No | No |
| Power - Max | 2.5VA | 2.5VA | 2.5VA | 20VA | 20VA |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Size / Dimension | 41.28mm L x 36.37mm W | 41.28mm L x 36.37mm W | 41.28mm L x 36.37mm W | 57.20mm L x 47.60mm W | 57.20mm L x 47.60mm W |
| Height - Seated (Max) | 28.60mm | 28.60mm | 28.60mm | 41.28mm | 41.28mm |
| Voltage - Isolation | 3500Vrms | 3500Vrms | 3500Vrms | 3500Vrms | 3500Vrms |
| Weight | - | - | - | - | - |
