Signal Transformer PC-24-1000
- Part No.:
- PC-24-1000
- Manufacturer:
- Signal Transformer
- Category:
- Power Transformers
- Package:
- Datasheet:
-
PC-24-1000.pdf
- Description:
- PWR XFMR LAMINATED 24VA TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PC-24-1000 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Signal Transformer
- Series:
- PC
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Laminated Core
- Voltage - Primary:
- 115V
- Voltage - Secondary (Full Load):
- Parallel 12V, Series 24V
- Current - Output (Max):
- Parallel 2A, Series 1A
- Primary Winding(s):
- Single
- Secondary Winding(s):
- Dual
- Center Tap:
- No
- Power - Max:
- 24VA
- Mounting Type:
- Through Hole
- Termination Style:
- PC Pin
- Size / Dimension:
- 41.30mm L x 57.20mm W
- Height - Seated (Max):
- 34.93mm
- Voltage - Isolation:
- 1500Vrms
- Weight:
- 0.75 lb (340.19 g)
| Image |  |
 |
 |
 |
|

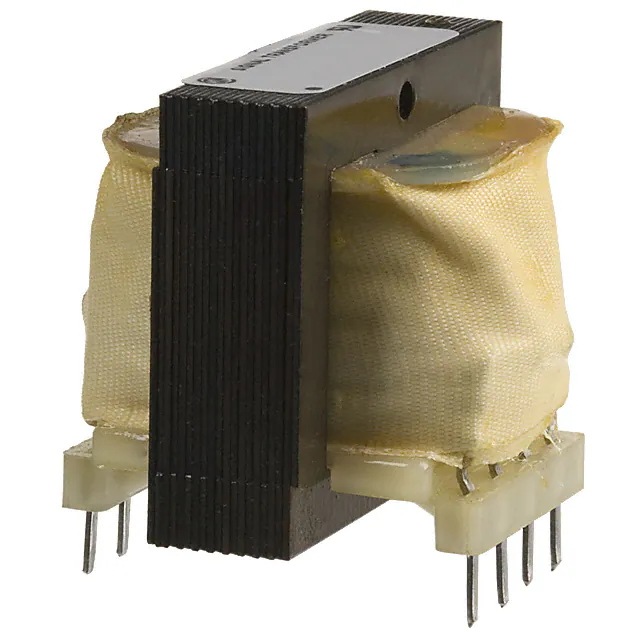

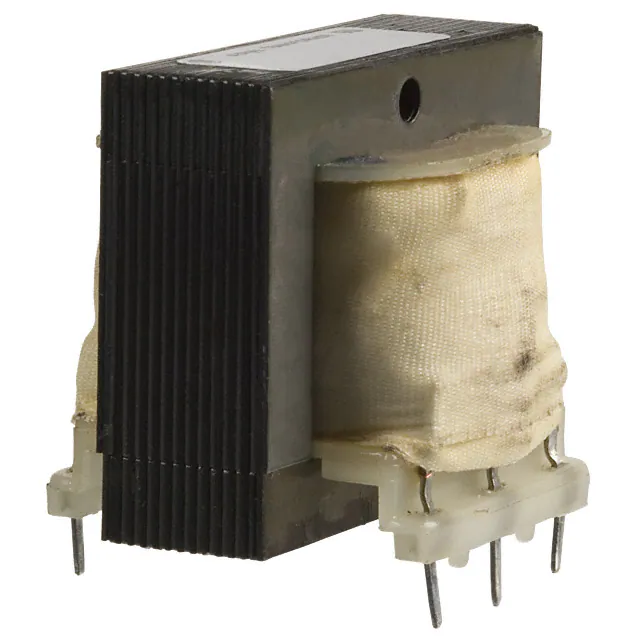

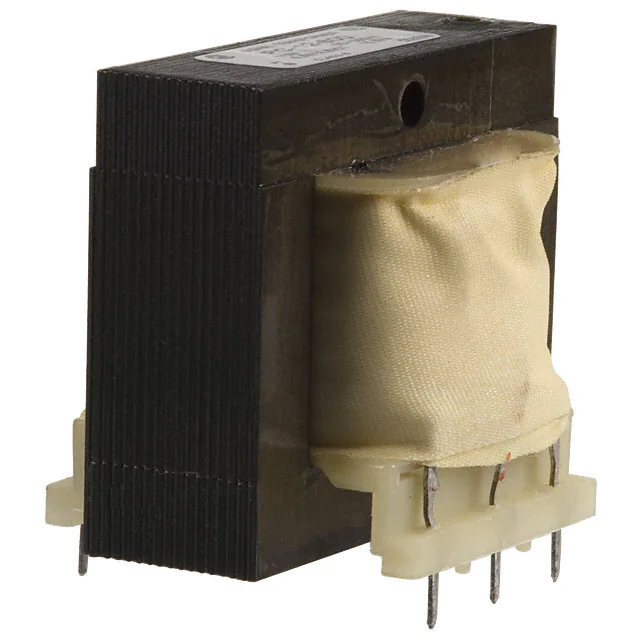

| Part Number | PC-24-1000 | PC-10-90 | PC-34-125 | PC-34-300 | PC-40-250 |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Series | PC | PC | PC | PC | PC |
| Packaging | Box | Bulk | Box | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Type | Laminated Core | Laminated Core | Laminated Core | Laminated Core | Laminated Core |
| Voltage - Primary | 115V | 115V | 115V | 115V | 115V |
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V | Parallel 5V, Series 10V | Parallel 17V, Series 34V | Parallel 17V, Series 34V | Parallel 20V, Series 40V |
| Current - Output (Max) | Parallel 2A, Series 1A | Parallel 180mA, Series 90mA | Parallel 250mA, Series 125mA | Parallel 600mA, Series 300mA | Parallel 500mA, Series 250mA |
| Primary Winding(s) | Single | Single | Single | Single | Single |
| Secondary Winding(s) | Dual | Dual | Dual | Dual | Dual |
| Center Tap | No | No | No | No | No |
| Power - Max | 24VA | 1VA | 4.4VA | 10VA | 10VA |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Size / Dimension | 41.30mm L x 57.20mm W | 25.40mm L x 34.92mm W | 41.30mm L x 31.80mm W | 47.60mm L x 36.50mm W | 47.60mm L x 36.50mm W |
| Height - Seated (Max) | 34.93mm | 21.08mm | 34.92mm | 41.27mm | 41.27mm |
| Voltage - Isolation | 1500Vrms | 1500Vrms | 1500Vrms | 1500Vrms | 1500Vrms |
| Weight | 0.75 lb (340.19 g) | 0.157 lb (71.21 g) | 0.313 lb (141.97 g) | 0.563 lb (255.37 g) | 0.563 lb (255.37 g) |
