Tianma P1040XGF1MA00
- Part No.:
- P1040XGF1MA00
- Manufacturer:
- Tianma
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Tianma 10.4" IPS LCM 1024×768 1300nits WLED LVDS 20pins 6.8G Vibration
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
P1040XGF1MA00 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Tianma
- Panel Size:
- 10.4"
- TNVAIPS:
- IPS
- Resolution:
- 1024×768
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 88/88/88/88
- Colors:
- 262K/16.7M
- Outline Size:
- 230 × 180.2 × 9.8 (H×V×D)
- Treatment:
- Antiglare
- Brightness:
- 1300 cd/m² (Typ.)
- Contrast Ratio:
- 1000 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 35 (Typ.)(Tr+Td) ms
- Best View on:
- Symmetry
- Work Mode:
- SFT, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K/16.7M 50% NTSC
- Mass:
- 430g (Typ.)
- Used for:
- Industrial; Rugged Industry; Outdoor High Brightness
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

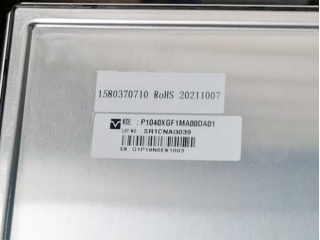

| Image |  |
 |
| Part Number | P1040XGF1MA00 | P1040XGF1MA00DA01 |
| Manufacturer | Tianma | Tianma |
| Panel Size | 10.4" | 10.4" |
| TNVAIPS | IPS | IPS |
| Resolution | 1024×768 | 1024×768 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 88/88/88/88 | 88/88/88/88 |
| Colors | 262K/16.7M | 262K/16.7M |
| Outline Size | 230 × 180.2 × 9.8 (H×V×D) | 250(W)×200(H) ×13.15(D) mm |
| Treatment | Antiglare | Antiglare |
| Brightness | 1300 cd/m² (Typ.) | 1000 cd/m² (Min.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) | 1000:1 (Typ.) (TM) |
| View Direction | ||
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down) | 88/88/88/88 (Typ.)(CR≥10) |
| Response Time | 35 (Typ.)(Tr+Td) ms | - |
| Best View on | Symmetry | - |
| Work Mode | SFT, Normally Black, Transmissive | SFT, Normally Black, Transmissive |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 262K/16.7M 50% NTSC | 262K/16.7M 45% NTSC |
| Mass | 430g (Typ.) | TBD |
| Used for | Industrial; Rugged Industry; Outdoor High Brightness | |
| Touch Screen | Without | PCAP, Air Bonding, USB |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
