BOE NV116WHM-N49
- Part No.:
- NV116WHM-N49
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 11.6" IPS LCM 1366×768 250nits WLED eDP 30pins BOE0979
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
NV116WHM-N49 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 11.6"
- TNVAIPS:
- IPS
- Resolution:
- 1366×768
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 85/85/85/85
- Colors:
- 262K
- Outline Size:
- 278(W)×168(H)×3(D)
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 250 (Typ.)(cd/m²)
- Contrast Ratio:
- 1000 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 85/85/85/85 (Typ.)(CR≥10)
- Response Time:
- 20 (Typ.)(Tr+Td) ms
- Best View on:
- Symmetry
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K 50% NTSC
- Mass:
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
 |
 |

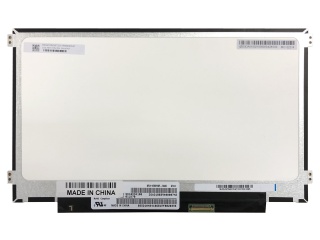

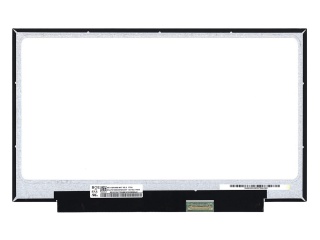

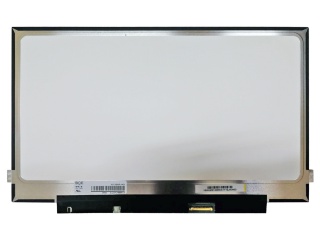

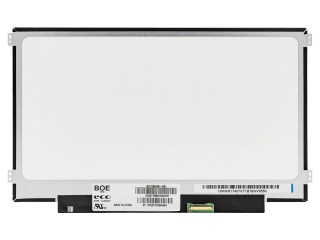

| Part Number | NV116WHM-N49 | NV116WHM-N45 | NV116WHM-N47 | NV116WHM-N43 | NV116WHM-N41 |
| Manufacturer | BOE | BOE | BOE | BOE | BOE |
| Panel Size | 11.6" | 11.6" | 11.6" | 11.6" | 11.6" |
| TNVAIPS | IPS | IPS | IPS | IPS | IPS |
| Resolution | 1366×768 | 1366×768 | 1366×768 | 1366×768 | 1366×768 |
| CR | 1900/2/10 16:01:00 | 1900/2/2 8:01:00 | 1900/2/10 16:01:00 | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 |
| Viewing Angle | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 | 80/80/80/80 | 85/85/85/85 |
| Colors | 262K | 262K | 262K | 262K | 262K |
| Outline Size | 278(W)×168(H)×3(D) | 278(W)×168(H) ×3(D) mm | 268(H)×168(V)×3(D) mm | 278(W)×168(H) ×3(D) mm | 278(W)×168(H) ×3(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | - | Antiglare | |
| Brightness | 250 (Typ.)(cd/m²) | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) | 220 cd/m² (Typ.) | 220 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 800:1 (Typ.) (TM) | 800:1 (Typ.) (TM) | |
| View Direction | Symmetry | ||||
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 80/80/80/80 (Min.)(CR≥10) | 85/85/85/85 (Typ.)(CR≥10) |
| Response Time | 20 (Typ.)(Tr+Td) ms | 20 (Typ.)(Tr+Td) | 30 (Typ.)(Tr+Td) | 30 (Typ.)(Tr+Td) | |
| Best View on | Symmetry | Symmetry | Symmetry | Symmetry | |
| Work Mode | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 262K 50% NTSC | 262K 50% NTSC | 262K 50% NTSC | 262K 45% NTSC | 262K 50% NTSC |
| Mass | |||||
| Used for | Laptop | ||||
| Touch Screen | Without | Without | Without | Without | |
| Refresh Rate | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz |
