BOE NT156WHM-N42
- Part No.:
- NT156WHM-N42
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 15.6" TN LCM 1366×768 220nits WLED eDP 30pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
NT156WHM-N42 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 15.6"
- TNVAIPS:
- TN
- Resolution:
- 1366×768
- CR:
- 1900/1/20 20:01:00
- Viewing Angle:
- 45/45/20/40
- Colors:
- 262K
- Outline Size:
- 359.5 × 223.8 × 3.2 (H×V×D)
- Treatment:
- Antiglare (Haze 25%), Hard coating (3H)
- Brightness:
- 220 cd/m² (Typ.)
- Contrast Ratio:
- 500 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 45/45/20/40 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 12 (Typ.)(Tr+Td) ms
- Best View on:
- 6 o'clock
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K 45% NTSC
- Mass:
- Used for:
- Laptop
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
 |
 |

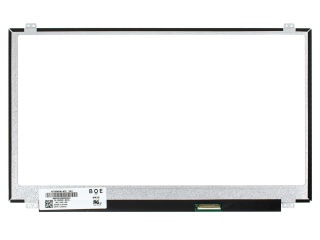

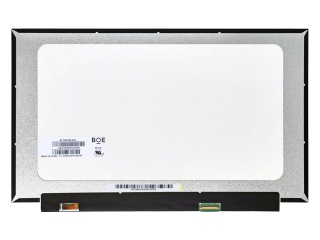

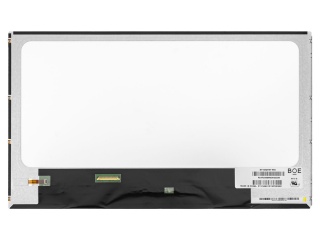

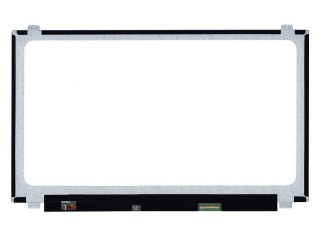

| Part Number | NT156WHM-N42 | NT156WHM-N10 | NT156WHM-N44 | NT156WHM-N32 | NT156WHM-N50 |
| Manufacturer | BOE | BOE | BOE | BOE | BOE |
| Panel Size | 15.6" | 15.6" | 15.6" | 15.6" | 15.6" |
| TNVAIPS | TN | TN | TN | TN | TN |
| Resolution | 1366×768 | 1366×768 | 1366×768 | 1366×768 | 1366×768 |
| CR | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 | 1900/1/16 16:01:00 | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 |
| Viewing Angle | 45/45/20/40 | 45/45/20/40 | 45/45/20/40 | 45/45/20/40 | 45/45/20/40 |
| Colors | 262K | 262K | 262K | 262K | 262K |
| Outline Size | 359.5 × 223.8 × 3.2 (H×V×D) | 359.5(W)×223.8(H) ×3.8(D) mm | 350.68 × 216.245 × 3.2 (H×V×D) | 359.5(H)×223.8(V) ×3.2(D) mm | 359.5(W)×209.54(H) ×5.5(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) | Glare (Haze 0%) | Antiglare, Hard coating (3H) | Glare (Haze 0%) | |
| Brightness | 220 cd/m² (Typ.) | 220 cd/m² (Typ.) | 220 cd/m² (Typ.) | 220 cd/m² (Typ.) | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) | 500:1 (Typ.) (TM) | 400 : 1 (Typ.) (TM) | 500:1 (Typ.) (TM) | |
| View Direction | 6 o'clock | ||||
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) (Left / Right / Up / Down) | 45/45/20/40 (Typ.)(CR≥10) (Left / Right / Up / Down) | 45/45/20/40 (Typ.)(CR≥10) (Left / Right / Up / Down) | 45/45/20/40 (Typ.)(CR≥10) (Left / Right / Up / Down) | 45/45/20/40 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 12 (Typ.)(Tr+Td) ms | 12 (Typ.)(Tr+Td) | 12 (Typ.)(Tr+Td) ms | 12 (Typ.)(Tr+Td) | |
| Best View on | 6 o'clock | 6 o'clock | 6 o'clock | 6 o'clock | |
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive | |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 262K 45% NTSC | 262K 45% NTSC | 262K 45% NTSC | 262K 45% NTSC | 262K 45% NTSC |
| Mass | |||||
| Used for | Laptop | Laptop | Laptop | Laptop | |
| Touch Screen | Without | Without | Without | Without | |
| Refresh Rate | 60Hz | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
