BOE NT140WHM-N44
- Part No.:
- NT140WHM-N44
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 14" TN LCM 1366×768 220nits WLED eDP 30pins BOE0705
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
NT140WHM-N44 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 14"
- TNVAIPS:
- TN
- Resolution:
- 1366×768
- CR:
- 1900/1/20 20:01:00
- Viewing Angle:
- 45/45/20/40
- Colors:
- 262K
- Outline Size:
- 315.9(W)×205.1(H)×3(D) mm
- Treatment:
- Antiglare
- Brightness:
- 220 cd/m² (Typ.)
- Contrast Ratio:
- 500:1 (Typ.) (TM)
- View Direction:
- 6 o'clock
- Viewing Angle:
- 45/45/20/40 (Typ.)(CR≥10)
- Response Time:
- 25 (Typ.)(Tr+Td)
- Best View on:
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K 45% NTSC
- Mass:
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
 |
 |

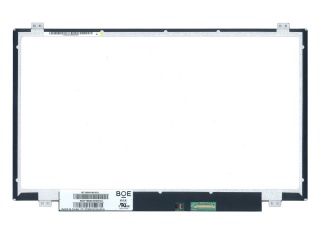

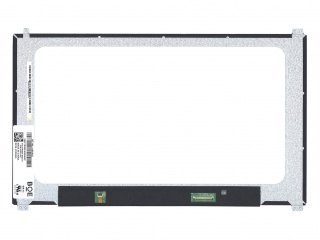

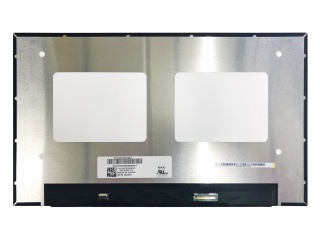

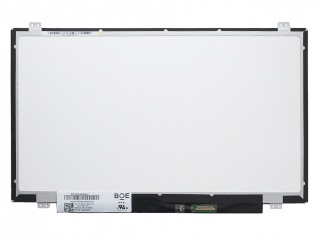

| Part Number | NT140WHM-N44 | NT140WHM-N31 | NT140WHM-N41 | NT140WHM-N45 | NT140WHM-N42 |
| Manufacturer | BOE | BOE | BOE | BOE | BOE |
| Panel Size | 14" | 14" | 14" | 14" | 14" |
| TNVAIPS | TN | TN | TN | TN | TN |
| Resolution | 1366×768 | 1366×768 | 1366×768 | 1366×768 | 1366×768 |
| CR | 1900/1/20 20:01:00 | 1900/1/25 0:01:00 | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 | 1900/1/20 20:01:00 |
| Viewing Angle | 45/45/20/40 | 45/45/20/40 | 45/45/20/40 | 45/45/20/40 | 45/45/20/40 |
| Colors | 262K | 16.2M | 16.2M | 262K | 262K |
| Outline Size | 315.9(W)×205.1(H)×3(D) mm | 320.4(W)×205.1(H)×3(D) mm | 320.4(H)×205.1(V) ×3(D) mm | 315.81(W)×186.09(H) ×3(D) mm | 320.9 × 199.2 × 5.2 (H×V×D) |
| Treatment | Antiglare | Glare (Haze 0%) | Antiglare | Antiglare, Hard coating (3H) | Antiglare |
| Brightness | 220 cd/m² (Typ.) | 220 cd/m² (Typ.) | 220 cd/m² (Typ.) | 220 cd/m² (Typ.) | 220 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) | 600:1 (Typ.) (TM) | 500:1 (Typ.) (TM) | 500:1 (Typ.) (TM) | 500 : 1 (Typ.) (TM) |
| View Direction | 6 o'clock | 6 o'clock | 6 o'clock | ||
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) | 45/45/20/40 (Typ.)(CR≥10) | 45/45/20/40 (Typ.)(CR≥10) (Left / Right / Up / Down) | 45/45/20/40 (Typ.)(CR≥10) | 45/45/20/40 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 25 (Typ.)(Tr+Td) | 12 (Typ.)(Tr+Td) | 12 (Typ.)(Tr+Td) | 12 (Typ.)(Tr+Td) | 12 (Typ.)(Tr+Td) ms |
| Best View on | 6 o'clock | 6 o'clock | |||
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 262K 45% NTSC | 16.2M 45% NTSC | 16.2M 45% NTSC | 262K 45% NTSC | 262K 45% NTSC |
| Mass | |||||
| Used for | Laptop | Laptop | |||
| Touch Screen | Without | Without | Without | Without | Without |
| Refresh Rate | 60Hz | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz |
