NLT NL10276BC20-18

Name: NL10276BC20-18
Brand: NLT
SKU: NL10276BC20-18
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: NL10276BC20-18

Manufacturer:: NLT

Category:: TFT-LCD Panel

Package:

Description:: NLT 10.4" TN LCM 1024×768 400nits WLED LVDS 20pins

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

NL10276BC20-18 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: NLT

Panel Size:: 10.4"

TNVAIPS:: TN

Resolution:: 1024×768

CR:: 1900/2/6 12:01:00

Viewing Angle:: 80/80/80/80

Colors:: 262K/16.7M

Outline Size:: 228(H)×178.5(V) ×9.2(D) mm

Treatment:

Brightness:: 400 cd/m² (Typ.)

Contrast Ratio:

View Direction:: 6 o'clock

Viewing Angle:: 80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:

Best View on:

Work Mode:

Glass Thickness:

Transmissivity:

Color Depth:: 262K/16.7M 40% NTSC

Mass:: 380/400g (Typ./Max.)

Used for:

Touch Screen:

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

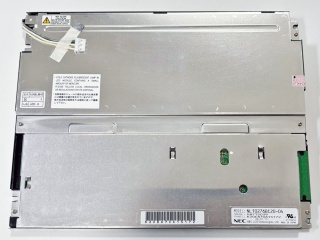

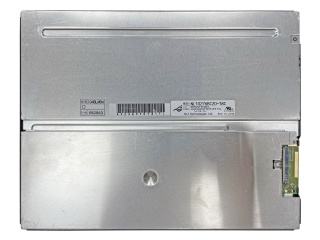

Part Number	NL10276BC20-18	NL10276BC20-18D	NL10276BC20-18F	NL10276BC20-18C	NL10276BC20-04
Manufacturer	NLT	NLT	NLT	NLT	NLT
Panel Size	10.4"	10.4"	10.4"	10.4"	10.4"
TNVAIPS	TN	TN	TN	TN	TN
Resolution	1024×768	1024×768	1024×768	1024×768	1024×768
CR	1900/2/6 12:01:00	1900/2/6 12:01:00	1900/2/6 12:01:00	1900/2/6 12:01:00	1900/1/12 12:01:00
Viewing Angle	80/80/80/80	80/80/80/80	80/80/80/80	80/80/80/80	60/60/45/60
Colors	262K/16.7M	262K/16.7M	262K/16.7M	262K/16.7M	262K
Outline Size	228(H)×178.5(V) ×9.2(D) mm	228(W)×178.5(H)×9.2(D) mm	228(H)×178.5(V) ×9.2(D) mm	228(W)×178.5(H)×9.2(D)	243(H)×185.1(V) ×11.5(D) mm
Treatment			Clear, Hard coating (3H)	Clear, Hard coating (2H), Antireflection	Clear, Hard coating (3H)
Brightness	400 cd/m² (Typ.)	400 cd/m² (Typ.)	800 cd/m² (Typ.)	800 (Typ.)(cd/m²)	300 cd/m² (Typ.)
Contrast Ratio			900:1 (Typ.) (TM)	900 : 1 (Typ.) (TM)	300:1 (Typ.) (TM)
View Direction	6 o'clock		6 o'clock		6 o'clock
Viewing Angle	80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)	80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)	80/80/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)	80/80/80/80 (Typ.)(CR≥10)	60/60/45/60 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time			3/15 (Typ.)(Tr/Td)	3/15 (Typ.)(Tr/Td) ms	15/40 (Typ.)(Tr/Td)
Best View on		6 o'clock		6 o'clock
Work Mode			TN, Normally White, Transmissive	TN, Normally White, Transmissive	TN, Normally White, Transmissive
Glass Thickness
Transmissivity
Color Depth	262K/16.7M 40% NTSC	262K/16.7M 40% NTSC	262K/16.7M 40% NTSC	262K/16.7M 40% NTSC	262K 40% NTSC
Mass	380/400g (Typ./Max.)	380/400g (Typ./Max.)	380/400g (Typ./Max.)	380/400g (Typ./Max.)	530/550g (Typ./Max.)
Used for			Industrial		Industrial
Touch Screen			Without	Without	Without
Refresh Rate	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz	60Hz	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
