BOE NE140FHM-N61
- Part No.:
- NE140FHM-N61
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 14" IPS LCM 1920×1080 400nits WLED eDP 30pins BOE07DB
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
NE140FHM-N61 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 14"
- TNVAIPS:
- IPS
- Resolution:
- 1920×1080
- CR:
- 1900/3/2 12:01:00
- Viewing Angle:
- 85/85/85/85
- Colors:
- 16.2M
- Outline Size:
- 315.312 × 196.1 × 2.4 (H×V×D)
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 400 cd/m² (Typ.)
- Contrast Ratio:
- 1500 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 35 (Typ.)(Tr+Td) ms
- Best View on:
- Symmetry
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.2M 72% NTSC
- Mass:
- Used for:
- Laptop
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |
 |
 |

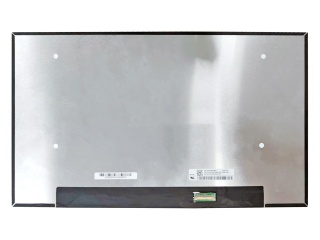

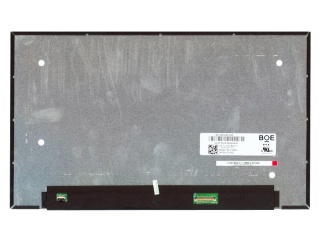

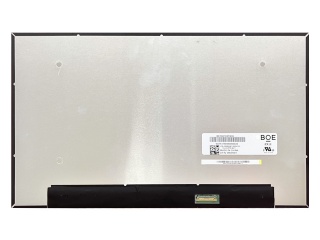

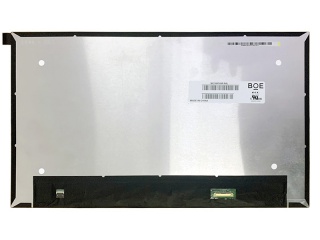

| Part Number | NE140FHM-N61 | NE140FHM-N6L | NE140FHM-N46 | NE140FHM-N4N | NE140FHM-N44 |
| Manufacturer | BOE | BOE | BOE | BOE | BOE |
| Panel Size | 14" | 14" | 14" | 14" | 14" |
| TNVAIPS | IPS | IPS | IPS | IPS | IPS |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| CR | 1900/3/2 12:01:00 | 1900/2/19 0:01:00 | 1900/3/2 12:01:00 | 1900/2/10 16:01:00 | 1900/3/2 12:01:00 |
| Viewing Angle | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 | 89/89/89/89 | 85/85/85/85 |
| Colors | 16.2M | 262K | 16.7M | 262K | 262K |
| Outline Size | 315.312 × 196.1 × 2.4 (H×V×D) | 314.31(W)×185.09(H)×3.8(D) | 315.81 × 186.26 × 4.4 (H×V×D) | 315.81(W)×186.09(H) ×5.25(D) mm | 315.81(W)×186.09(H)×5.25(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Antiglare, Hard coating (3H) |
| Brightness | 400 cd/m² (Typ.) | 400 (Typ.)(cd/m²) | 400 cd/m² (Typ.) | 250 cd/m² (Typ.) | 300 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) | 1200 : 1 (Typ.) (TM) | 1500 : 1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry | ||||
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/85/85 (Typ.)(CR≥10) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) | 85/85/85/85 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 35 (Typ.)(Tr+Td) ms | 12 (Typ.)(Tr+Td) ms | 30 (Typ.)(Tr+Td) ms | 25 (Typ.)(Tr+Td) | 35 (Typ.)(Tr+Td) |
| Best View on | Symmetry | Symmetry | Symmetry | Symmetry | |
| Work Mode | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 16.2M 72% NTSC | 262K 100% sRGB | 16.7M 100% sRGB | 262K 45% NTSC | 262K 72% NTSC |
| Mass | |||||
| Used for | Laptop | Laptop | Laptop | ||
| Touch Screen | Without | Without | Without | Without | Without |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz | 60Hz | 60Hz |
