Innolux N156HCE-EN1
- Part No.:
- N156HCE-EN1
- Manufacturer:
- Innolux
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Innolux 15.6" IPS LCM 1920×1080 300nits WLED eDP 30pins CMN15E8
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
N156HCE-EN1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Innolux
- Panel Size:
- 15.6"
- TNVAIPS:
- IPS
- Resolution:
- 1920×1080
- CR:
- 1900/1/29 4:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- 350.66(W)×216.25(H)×2.6(D) mm
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 300 cd/m² (Typ.)
- Contrast Ratio:
- 700:1 (Typ.) (TM)
- View Direction:
- Symmetry
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 14/11 (Typ.)(Tr/Td)
- Best View on:
- Work Mode:
- AAS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 72% NTSC
- Mass:
- Used for:
- Laptop; Industrial
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
 |
 |

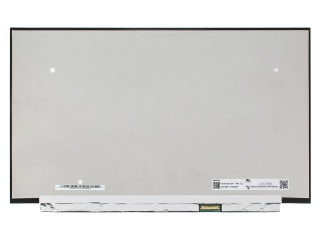

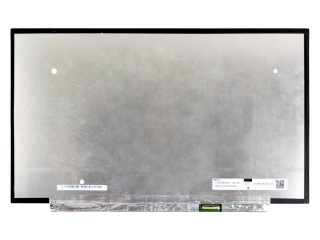

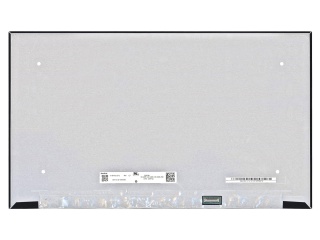

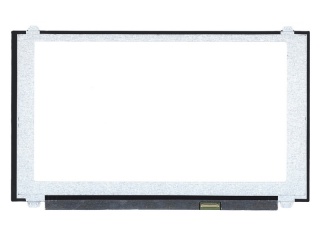

| Part Number | N156HCE-EN1 | N156HCE-GN1 | N156HCE-G72 | N156HCE-EAA | N156HCE-EN2 |
| Manufacturer | Innolux | Innolux | Innolux | Innolux | Innolux |
| Panel Size | 15.6" | 15.6" | 15.6" | 15.6" | 15.6" |
| TNVAIPS | IPS | IPS | IPS | IPS | IPS |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| CR | 1900/1/29 4:01:00 | 1900/2/10 16:01:00 | 1900/2/19 0:01:00 | 1900/2/2 8:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.7M | 16.7M | 16.7M | 262K | 16.7M |
| Outline Size | 350.66(W)×216.25(H)×2.6(D) mm | 350.66(W)×216.25(H)×2.6(D) mm | 350.66(H)×205.24(V) ×5(D) mm | 359.5(W)×223.8(H)×3.2(D) mm | 350.66(W)×216.25(H)×2.6(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | |
| Brightness | 300 cd/m² (Typ.) | 500 cd/m² (Typ.) | 400 cd/m² (Typ.) | 220 cd/m² (Typ.) | 300 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) | 1200:1 (Typ.) (TM) | 800:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | |
| View Direction | Symmetry | Symmetry | Symmetry | Symmetry | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) |
| Response Time | 14/11 (Typ.)(Tr/Td) | 11/9 (Typ.)(Tr/Td) | 14/11 (Typ.)(Tr/Td) | 14/11 (Typ.)(Tr/Td) | |
| Best View on | Symmetry | ||||
| Work Mode | AAS, Normally Black, Transmissive | AAS, Normally Black, Transmissive | AAS, Normally Black, Transmissive | AAS, Normally Black, Transmissive | |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 16.7M 72% NTSC | 16.7M 100% sRGB | 16.7M 100% sRGB | 262K 45% NTSC | 16.7M 100% DCI-P3 |
| Mass | |||||
| Used for | Laptop; Industrial | Laptop | Laptop | ||
| Touch Screen | Without | Without | Without | Without | |
| Refresh Rate | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz | 60Hz |
