Innolux N140HCA-EAC Rev.C1
- Part No.:
- N140HCA-EAC Rev.C1
- Manufacturer:
- Innolux
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Innolux 14" IPS LCM 1920×1080 250nits WLED eDP 30pins CMN14D4
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
N140HCA-EAC Rev.C1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Innolux
- Panel Size:
- 14"
- TNVAIPS:
- IPS
- Resolution:
- 1920×1080
- CR:
- 1900/2/2 8:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 262K
- Outline Size:
- 315.81 × 205.12 × 3 (H×V×D)
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 250 cd/m² (Typ.)
- Contrast Ratio:
- 800 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 14/11 (Typ.)(Tr/Td) ms
- Best View on:
- Symmetry
- Work Mode:
- AAS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 262K 45% NTSC
- Mass:
- Used for:
- Laptop; Industrial
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |
 |
 |

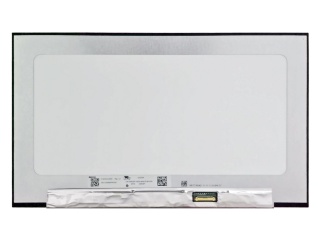

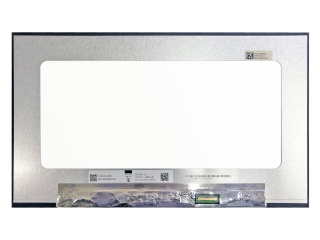

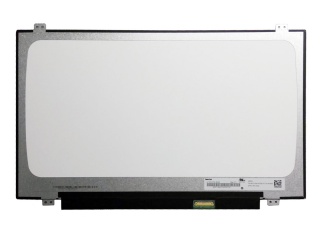

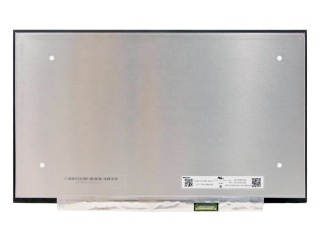

| Part Number | N140HCA-EAC Rev.C1 | N140HCA-E5C | N140HCA-E5B | N140HCA-EAE | N140HCA-EAB |
| Manufacturer | Innolux | Innolux | Innolux | Innolux | Innolux |
| Panel Size | 14" | 14" | 14" | 14" | 14" |
| TNVAIPS | IPS | IPS | IPS | IPS | IPS |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| CR | 1900/2/2 8:01:00 | 1900/2/2 8:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/1/29 4:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 262K | 262K | 16.7M | 16.7M | 262K |
| Outline Size | 315.81 × 205.12 × 3 (H×V×D) | 315.81(W)×186.09(H) ×5.25(D) mm | 315.81×186.05×5 (H×V×D) | 315.81(H)×195.55(V)×3(D) mm | 320.4(W)×205.1(H) ×3(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) | 220 cd/m² (Typ.) | 250 cd/m² (Typ.) | 300 cd/m² (Typ.) | 250 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) | 800:1 (Typ.) (TM) | 1000 : 1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 700:1 (Typ.) (TM) |
| View Direction | Symmetry | ||||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) |
| Response Time | 14/11 (Typ.)(Tr/Td) ms | 14/11 (Typ.)(Tr/Td) | 11/9 (Typ.)(Tr/Td) ms | 11/9 (Typ.)(Tr/Td) | 14/11 (Typ.)(Tr/Td) |
| Best View on | Symmetry | Symmetry | Symmetry | Symmetry | |
| Work Mode | AAS, Normally Black, Transmissive | AAS, Normally Black, Transmissive | AAS, Normally Black, Transmissive | AAS, Normally Black, Transmissive | AAS, Normally Black, Transmissive |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 262K 45% NTSC | 262K 45% NTSC | 16.7M 45% NTSC | 16.7M 45% NTSC | 262K 45% NTSC |
| Mass | |||||
| Used for | Laptop; Industrial | Laptop | Laptop | Laptop | |
| Touch Screen | Without | Without | Without | Without | Without |
| Refresh Rate | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
