BOE MV270QUM-N20
- Part No.:
- MV270QUM-N20
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 27" IPS LCM 3840×2160 350nits WLED eDP 30pins
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
MV270QUM-N20 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 27"
- TNVAIPS:
- IPS
- Resolution:
- 3840×2160
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 1.07B
- Outline Size:
- 608.8(W)×353.3(H) ×13.9(D) mm
- Treatment:
- Antiglare (Haze 25%), Hard coating (3H)
- Brightness:
- 350 cd/m² (Typ.)
- Contrast Ratio:
- 1000:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10)
- Response Time:
- TBD
- Best View on:
- Symmetry
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 1.07B 100% sRGB
- Mass:
- 3.22Kgs (Typ.)
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 60Hz
| Image |  |
 |
 |
 |
 |

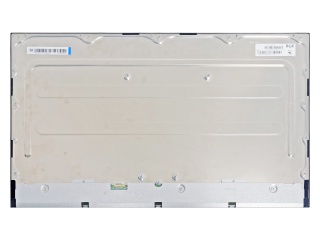

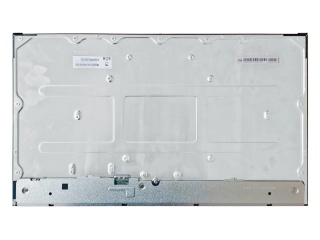

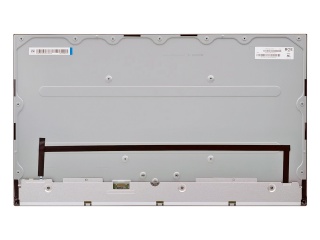

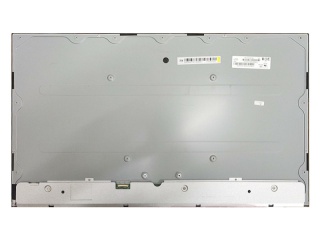

| Part Number | MV270QUM-N20 | MV270QUM-N50 | MV270QUM-N70 | MV270QUM-N60 | MV270QUM-N40 |
| Manufacturer | BOE | BOE | BOE | BOE | BOE |
| Panel Size | 27" | 27" | 27" | 27" | 27" |
| TNVAIPS | IPS | IPS | IPS | IPS | IPS |
| Resolution | 3840×2160 | 3840×2160 | 3840×2160 | 3840×2160 | 3840×2160 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/19 0:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 1.07B | 1.07B | 1.07B | 1.07B | 1.07B |
| Outline Size | 608.8(W)×353.3(H) ×13.9(D) mm | 609.4(W)×355.6(H) ×13.8(D) mm | 608.8(W)×355.3(H) ×13.3(D) mm | 608.8(W)×353.3(H) ×13.9(D) mm | 608.8(W)×353.3(H)×13.3(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | |
| Brightness | 350 cd/m² (Typ.) | 400 cd/m² (Typ.) | 360 cd/m² (Typ.) | 350 cd/m² (Typ.) | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1200:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | |
| View Direction | Symmetry | ||||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | TBD | 14 (Typ.)(G to G) | 14 (Typ.)(G to G) | 14 (Typ.)(G to G) | |
| Best View on | Symmetry | Symmetry | Symmetry | Symmetry | |
| Work Mode | ADS, Normally Black, Transmissive | HADS, Normally Black, Transmissive | HADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 1.07B 100% sRGB | 1.07B 95% DCI-P3 | 1.07B 100% sRGB | 1.07B 100% sRGB | 1.07B 100% Adobe RGB |
| Mass | 3.22Kgs (Typ.) | 2.45/2.60Kgs (Typ./Max.) | 3.24Kgs (Typ.) | 3.26Kgs (Typ.) | 2.30Kgs (Typ.) |
| Used for | Desktop Monitor | Desktop Monitor | |||
| Touch Screen | Without | Without | Without | Without | |
| Refresh Rate | 60Hz | 60Hz | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 60Hz |
