BOE MV238FHM-N30

Name: MV238FHM-N30
Brand: BOE
SKU: MV238FHM-N30
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: MV238FHM-N30

Manufacturer:: BOE

Category:: TFT-LCD Panel

Package:

Description:: BOE 23.8" IPS LCM 1920×1080 250nits WLED LVDS 30pins 75Hz

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

MV238FHM-N30 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: BOE

Panel Size:: 23.8"

TNVAIPS:: IPS

Resolution:: 1920×1080

CR:: 1900/2/10 16:01:00

Viewing Angle:: 89/89/89/89

Colors:: 16.7M

Outline Size:: 540.2 × 315.6 × 14.2 (H×V×D)

Treatment:: Antiglare (Haze 25%), Hard coating (3H)

Brightness:: 250 cd/m² (Typ.)

Contrast Ratio:: 1000 : 1 (Typ.) (TM)

View Direction:

Viewing Angle:: 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:: 14 (Typ.)(G to G) ms

Best View on:: Symmetry

Work Mode:: ADS, Normally Black, Transmissive

Glass Thickness:

Transmissivity:

Color Depth:: 16.7M 72% NTSC

Mass:: 2.24Kgs (Typ.)

Used for:: Desktop Monitor

Touch Screen:: Without

Refresh Rate:: 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

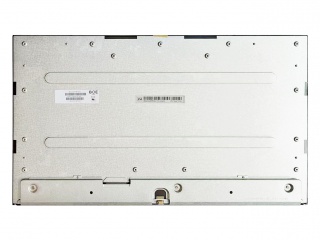

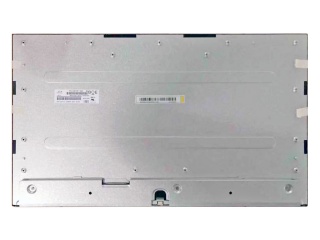

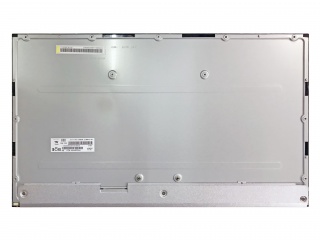

Part Number	MV238FHM-N30	MV238FHM-N10	MV238FHM-N20	MV238FHM-N62	MV238FHM-N60
Manufacturer	BOE	BOE	BOE	BOE	BOE
Panel Size	23.8"	23.8"	23.8"	23.8"	23.8"
TNVAIPS	IPS	IPS	IPS	IPS	IPS
Resolution	1920×1080	1920×1080	1920×1080	1920×1080	1920×1080
CR	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00
Viewing Angle	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89
Colors	16.7M	16.7M	16.7M	16.7M	16.7M
Outline Size	540.2 × 315.6 × 14.2 (H×V×D)	543(W)×317.4(H)×11.4(D)	535×313×13.2 (H×V×D)	535(W)×313(H) ×13(D) mm	535(H)×313(V)×13(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)	Antiglare (Haze 25%), Hard coating (3H)	Antiglare (Haze 25%), Hard coating (3H)
Brightness	250 cd/m² (Typ.)	250 (Typ.)(cd/m²)	250 cd/m² (Typ.)	250 cd/m² (Typ.)	250 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)	1000 : 1 (Typ.) (TM)	1000 : 1 (Typ.) (TM)	1000:1 (Typ.) (TM)	1000:1 (Typ.) (TM)
View Direction					Symmetry
Viewing Angle	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time	14 (Typ.)(G to G) ms	14 (Typ.)(G to G) ms	14 (Typ.)(G to G) ms	14 (Typ.)(G to G)	14 (Typ.)(G to G)
Best View on	Symmetry	Symmetry	Symmetry	Symmetry
Work Mode	ADS, Normally Black, Transmissive	HADS, Normally Black, Transmissive	HADS, Normally Black, Transmissive	ADS, Normally Black, Transmissive	ADS, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	16.7M 72% NTSC	16.7M 72% NTSC	16.7M 74% NTSC	16.7M 100% sRGB	16.7M 72% NTSC
Mass	2.24Kgs (Typ.)	2.32Kgs (Typ.)	2.20Kgs (Typ.)	2.20Kgs (Typ.)	2.20Kgs (Typ.)
Used for	Desktop Monitor		Desktop Monitor	Desktop Monitor	Desktop Monitor; Industrial
Touch Screen	Without	Without	Without	Without	Without
Refresh Rate	75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	75Hz	75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	75Hz	75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
