BOE MV215FHM-N40
- Part No.:
- MV215FHM-N40
- Manufacturer:
- BOE
- Category:
- TFT-LCD Panel
- Package:
- Description:
- BOE 21.5" IPS LCM 1920×1080 250nits WLED LVDS 30pins 75Hz
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
MV215FHM-N40 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- BOE
- Panel Size:
- 21.5"
- TNVAIPS:
- IPS
- Resolution:
- 1920×1080
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- 484.5×284.4×13.2 (H×V×D)
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 250 cd/m² (Typ.)
- Contrast Ratio:
- 1000 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 14 (Typ.)(G to G) ms
- Best View on:
- Symmetry
- Work Mode:
- ADS, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 73% NTSC
- Mass:
- 1.83Kgs (Typ.)
- Used for:
- Desktop Monitor; Industrial
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |
 |
 |

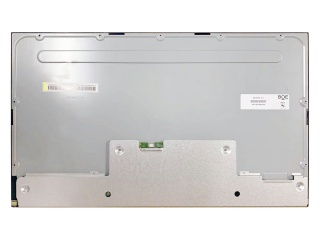

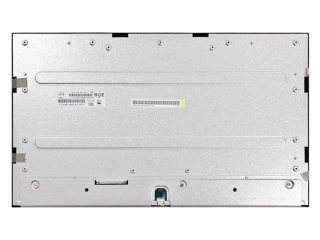

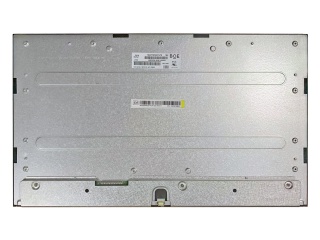

| Part Number | MV215FHM-N40 | MV215FHM-N30 | MV215FHM-N72 | MV215FHM-N70 | MV215FHM-A10 |
| Manufacturer | BOE | BOE | BOE | BOE | BOE |
| Panel Size | 21.5" | 21.5" | 21.5" | 21.5" | 21.5" |
| TNVAIPS | IPS | IPS | IPS | IPS | IPS |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Outline Size | 484.5×284.4×13.2 (H×V×D) | 489.3(W)×287(H) ×14.1(D) mm | 484.464(W)×284.486(H)×12.9(D) mm | 484.464(H)×284.486(V) ×12.9(D) mm | 485.3 × 285.3 × 14.4 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) | Hard coating (7H) |
| Brightness | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | 1000 : 1 (Typ.) (TM) |
| View Direction | Symmetry | Symmetry | |||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 14 (Typ.)(G to G) ms | 14 (Typ.)(G to G) | 14 (Typ.)(G to G) | 14 (Typ.)(G to G) | 14 (Typ.)(G to G) ms |
| Best View on | Symmetry | Symmetry | Symmetry | ||
| Work Mode | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive | ADS, Normally Black, Transmissive |
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 16.7M 73% NTSC | 16.7M 72% NTSC | 16.7M 100% sRGB | 16.7M 73% NTSC | 16.7M 100% sRGB |
| Mass | 1.83Kgs (Typ.) | 1.83Kgs (Typ.) | 1.80Kgs (Typ.) | 1.80Kgs (Typ.) | 2.16Kgs (Typ.) |
| Used for | Desktop Monitor; Industrial | Desktop Monitor; Industrial; Medical Imaging | Desktop Monitor | Desktop Monitor; Industrial | Desktop Monitor |
| Touch Screen | Without | Without | Without | Without | PCAP, Air Bonding, USB |
| Refresh Rate | 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 75Hz | 75Hz | 75Hz |
