CSOT MG2381B01-1
- Part No.:
- MG2381B01-1
- Manufacturer:
- CSOT
- Category:
- TFT-LCD Panel
- Package:
- Description:
- CSOT 23.8" VA LCM 1920×1080 300nits WLED LVDS 61pins 100Hz
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
MG2381B01-1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- CSOT
- Panel Size:
- 23.8"
- TNVAIPS:
- VA
- Resolution:
- 1920×1080
- CR:
- 1900/5/4 0:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- 535(W)×313(H) ×14.05(D) mm
- Treatment:
- Antiglare (Haze 25%), Hard coating (3H)
- Brightness:
- 300 cd/m² (Typ.)
- Contrast Ratio:
- 3000:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10)
- Response Time:
- 12 (Typ.)(G to G)
- Best View on:
- Symmetry
- Work Mode:
- VA, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 72% NTSC
- Mass:
- 2.15±0.20Kgs (Typ.)
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 100Hz

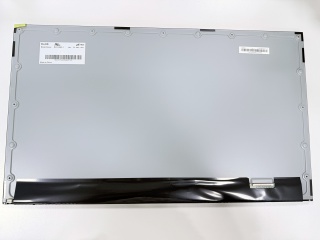

| Image |  |
 |
| Part Number | MG2381B01-2 | MG2381B01-1 |
| Manufacturer | CSOT | CSOT |
| Panel Size | 23.8" | 23.8" |
| TNVAIPS | VA | VA |
| Resolution | 1920×1080 | 1920×1080 |
| CR | 1900/6/14 16:01:00 | 1900/5/4 0:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 |
| Colors | 16.7M | 16.7M |
| Outline Size | 534.74(W)×313.26(H)×13.56(D) | 535(W)×313(H) ×14.05(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 250 (Typ.)(cd/m²) | 300 cd/m² (Typ.) |
| Contrast Ratio | 4000 : 1 (Typ.) (TM) | 3000:1 (Typ.) (TM) |
| View Direction | ||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) |
| Response Time | 16.4 (Typ.)(G to G) ms | 12 (Typ.)(G to G) |
| Best View on | Symmetry | Symmetry |
| Work Mode | VA, Normally Black, Transmissive | VA, Normally Black, Transmissive |
| Glass Thickness | ||
| Transmissivity | ||
| Color Depth | 16.7M 72% NTSC | 16.7M 72% NTSC |
| Mass | 2.08Kgs (Typ.) | 2.15±0.20Kgs (Typ.) |
| Used for | ||
| Touch Screen | Without | Without |
| Refresh Rate | 75Hz | 100Hz |
