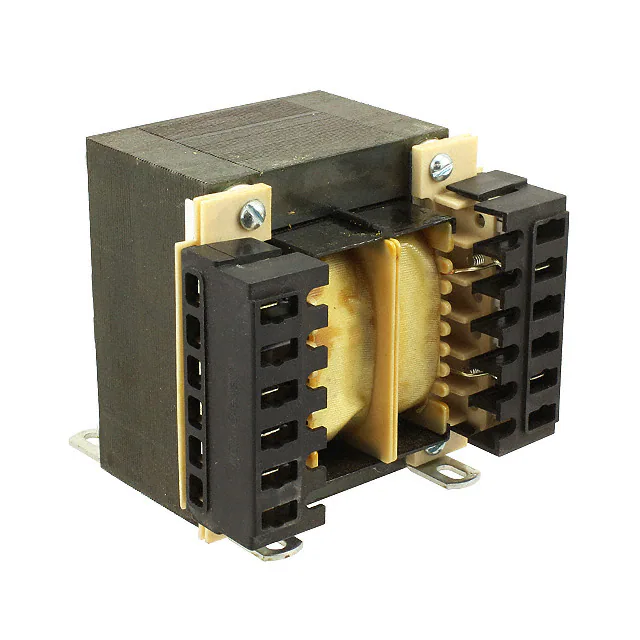

Signal Transformer M4L-3-10
- Part No.:
- M4L-3-10
- Manufacturer:
- Signal Transformer
- Category:
- Power Transformers
- Package:
- Datasheet:
-
M4L-3-10.pdf
- Description:
- PWR XFMR LAMINATED 1000VA CHAS
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
M4L-3-10 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Signal Transformer
- Series:
- M4L
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Laminated Core
- Voltage - Primary:
- 115V, 100V
- Voltage - Secondary (Full Load):
- 115V
- Current - Output (Max):
- 8.7A
- Primary Winding(s):
- Dual, Multiple Taps
- Secondary Winding(s):
- Single
- Center Tap:
- No
- Power - Max:
- 1000VA
- Mounting Type:
- Chassis Mount
- Termination Style:
- Terminal Block
- Size / Dimension:
- 124.20mm L x 144.78mm W
- Height - Seated (Max):
- 133.40mm
- Voltage - Isolation:
- 4000Vrms
- Weight:
- 22 lbs (10 kg)
| Image |  |
 |
|
|
|
| Part Number | M4L-3-10 | M4L-2-3 | M4L-2-6 | M4L-1-6 | M4L-3-4 |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Series | M4L | M4L | M4L | M4L | M4L |
| Packaging | Bulk | Bulk | Bulk | Bulk | Box |
| Product Status | Active | Active | Active | Active | Active |
| Type | Laminated Core | Laminated Core | Laminated Core | Laminated Core | Laminated Core |
| Voltage - Primary | 115V, 100V | 250V, 230V, 210V | 250V, 230V, 210V | 125V, 115V, 105V | 115V, 100V |
| Voltage - Secondary (Full Load) | 115V | 115V | 115V | 115V | 115V |
| Current - Output (Max) | 8.7A | 2.6A | 5.2A | 5.2A | 3.9A |
| Primary Winding(s) | Dual, Multiple Taps | Single, Multiple Taps | Single, Multiple Taps | Single, Multiple Taps | Dual, Multiple Taps |
| Secondary Winding(s) | Single | Single | Single | Single | Single |
| Center Tap | No | No | No | No | No |
| Power - Max | 1000VA | 300VA | 600VA | 600VA | 450VA |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Termination Style | Terminal Block | Terminal Block | Terminal Block | Terminal Block | Terminal Block |
| Size / Dimension | 124.20mm L x 144.78mm W | 106.68mm L x 103.51mm W | 113.28mm L x 129.03mm W | 113.28mm L x 129.03mm W | 113.28mm L x 110.00mm W |
| Height - Seated (Max) | 133.40mm | 95.30mm | 114.30mm | 114.30mm | 114.30mm |
| Voltage - Isolation | 4000Vrms | 4000Vrms | 4000Vrms | 4000Vrms | 4000Vrms |
| Weight | 22 lbs (10 kg) | 7 lbs (3.2 kg) | 15 lbs (6.8 kg) | 15 lbs (6.8 kg) | 11 lbs (5 kg) |
