Innolux M236HJJ-L31
- Part No.:
- M236HJJ-L31
- Manufacturer:
- Innolux
- Category:
- TFT-LCD Panel
- Package:
- Description:
- Innolux 23.6" VA LCM 1920×1080 250nits WLED LVDS 30pins 75Hz
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
M236HJJ-L31 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Innolux
- Panel Size:
- 23.6"
- TNVAIPS:
- VA
- Resolution:
- 1920×1080
- CR:
- 1900/5/4 0:01:00
- Viewing Angle:
- 89/89/89/89
- Colors:
- 16.7M
- Outline Size:
- 544.8(W)×320.5(H) ×11.5(D) mm
- Treatment:
- Antiglare (Haze 25%), Hard coating (3H)
- Brightness:
- 250 cd/m² (Typ.)
- Contrast Ratio:
- 3000:1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 89/89/89/89 (Typ.)(CR≥10)
- Response Time:
- 20 (Typ.)(G to G)
- Best View on:
- Symmetry
- Work Mode:
- MVA, Normally Black, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 72% NTSC
- Mass:
- 2.31±0.11Kgs
- Used for:
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz

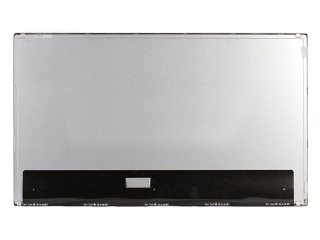

| Image |  |
 |
 |
| Part Number | M236HJJ-L31 | M236HJJ-L30 | M236HJJ-L3B |
| Manufacturer | Innolux | Innolux | Innolux |
| Panel Size | 23.6" | 23.6" | 23.6" |
| TNVAIPS | VA | VA | VA |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 |
| CR | 1900/5/4 0:01:00 | 1900/5/4 0:01:00 | 1900/5/4 0:01:00 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 88/88/88/88 |
| Colors | 16.7M | 16.7M | 16.7M |
| Outline Size | 544.8(W)×320.5(H) ×11.5(D) mm | 544.8(W)×320.5(H) ×11.5(D) mm | 536.68(H)×312.86(V) ×15.1(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) | Antiglare (Haze 3%), Hard coating (3H) | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) |
| Contrast Ratio | 3000:1 (Typ.) (TM) | 3000:1 (Typ.) (TM) | 3000:1 (Typ.) (TM) |
| View Direction | Symmetry | ||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down) | 88/88/88/88 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 20 (Typ.)(G to G) | 10 (Typ.)(G to G) | 20/5 (Typ.)(Tr/Td) |
| Best View on | Symmetry | Symmetry | |
| Work Mode | MVA, Normally Black, Transmissive | Super MVA, Normally Black, Transmissive | Super MVA, Normally Black, Transmissive |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 16.7M 72% NTSC | 16.7M 72% NTSC | 16.7M 72% NTSC |
| Mass | 2.31±0.11Kgs | 2.31±0.11Kgs | 2.44/2.56Kgs (Typ./Max.) |
| Used for | Desktop Monitor | Desktop Monitor | |
| Touch Screen | Without | Without | Without |
| Refresh Rate | 75Hz | 60Hz | 75Hz |
