AUO M215HTN01.1
- Part No.:
- M215HTN01.1
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 21.5" TN LCM 1920×1080 250nits WLED LVDS 30pins 75Hz
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
M215HTN01.1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 21.5"
- TNVAIPS:
- TN
- Resolution:
- 1920×1080
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 85/85/80/80
- Colors:
- 16.7M
- Outline Size:
- 495.6(H)×292.2(V) ×10.8(D) mm
- Treatment:
- Brightness:
- 250 cd/m² (Typ.)
- Contrast Ratio:
- View Direction:
- -
- Viewing Angle:
- 85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- Best View on:
- Work Mode:
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 72% NTSC
- Mass:
- 1.75Kgs (Typ.)
- Used for:
- Touch Screen:
- Refresh Rate:
- 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
| Image |  |
 |
 |

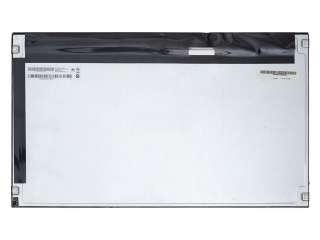

| Part Number | M215HTN01.1 | M215HTN01.3 | M215HTN01.0 |
| Manufacturer | AUO | AUO | AUO |
| Panel Size | 21.5" | 21.5" | 21.5" |
| TNVAIPS | TN | TN | TN |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 |
| CR | 1900/2/10 16:01:00 | 1900/1/25 0:01:00 | 1900/1/25 0:01:00 |
| Viewing Angle | 85/85/80/80 | 45/45/20/45 | 45/45/20/45 |
| Colors | 16.7M | 16.7M | 16.7M |
| Outline Size | 495.6(H)×292.2(V) ×10.8(D) mm | 495.6(W)×292.2(H)×10.8(D) mm | 495.6(H)×292.2(V)×10.7(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | |
| Brightness | 250 cd/m² (Typ.) | 200 cd/m² (Typ.) | 200 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) | 600:1 (Typ.) (TM) | |
| View Direction | - | 6 o'clock | - |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 45/45/20/45 (Typ.)(CR≥10) | 45/45/20/45 (Typ.)(CR≥10) (Left / Right / Up / Down) |
| Response Time | 3.8/1.2 (Typ.)(Tr/Td) | 3.8/1.2 (Typ.)(Tr/Td) | |
| Best View on | |||
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | |
| Glass Thickness | |||
| Transmissivity | |||
| Color Depth | 16.7M 72% NTSC | 16.7M 72% NTSC | 16.7M 72% NTSC |
| Mass | 1.75Kgs (Typ.) | 1.75Kgs (Typ.) | 1.85Kgs |
| Used for | Desktop Monitor | ||
| Touch Screen | Without | Without | |
| Refresh Rate | 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 75Hz | 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) |
