AUO M190PW01 V8
- Part No.:
- M190PW01 V8
- Manufacturer:
- AUO
- Category:
- TFT-LCD Panel
- Package:
- Description:
- AUO 19" TN LCM 1440×900 250nits WLED LVDS 30pins 75Hz
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
M190PW01 V8 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- AUO
- Panel Size:
- 19"
- TNVAIPS:
- TN
- Resolution:
- 1440×900
- CR:
- 1900/2/10 16:01:00
- Viewing Angle:
- 85/85/80/80
- Colors:
- 16.7M
- Outline Size:
- 428 × 278 × 10.8 (H×V×D)
- Treatment:
- Antiglare, Hard coating (3H)
- Brightness:
- 250 cd/m² (Typ.)
- Contrast Ratio:
- 1000 : 1 (Typ.) (TM)
- View Direction:
- Viewing Angle:
- 85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down)
- Response Time:
- 3.6/1.4 (Typ.)(Tr/Td) ms
- Best View on:
- -
- Work Mode:
- TN, Normally White, Transmissive
- Glass Thickness:
- Transmissivity:
- Color Depth:
- 16.7M 72% NTSC
- Mass:
- 1.45Kgs (Typ.)
- Used for:
- Desktop Monitor
- Touch Screen:
- Without
- Refresh Rate:
- 75Hz

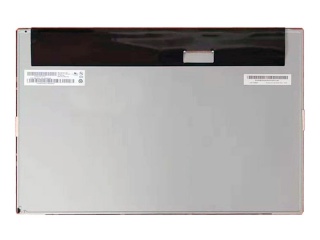

| Image |  |
 |
 |
 |
 |
| Part Number | M190PW01 V8 | M190PW01 V80E | M190PW01 V80L | M190PW01 V80F | M190PW01 V80J |
| Manufacturer | AUO | AUO | AUO | AUO | AUO |
| Panel Size | 19" | 19" | 19" | 19" | 19" |
| TNVAIPS | TN | TN | TN | TN | TN |
| Resolution | 1440×900 | 1440×900 | 1440×900 | 1440×900 | 1440×900 |
| CR | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 | 1900/2/10 16:01:00 |
| Viewing Angle | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 |
| Colors | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Outline Size | 428 × 278 × 10.8 (H×V×D) | 428(W)×278(H)×10.8(D) mm | 428(H)×278(V) ×10.8(D) mm | 428 × 278 × 10.8 (H×V×D) | 428(W)×278(H) ×10.8(D) mm |
| Treatment | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | Antiglare, Hard coating (3H) | ||
| Brightness | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) | 1000 : 1 (Typ.) (TM) | 1000:1 (Typ.) (TM) | ||
| View Direction | - | ||||
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/80/80 (Typ.)(CR≥10) (Left / Right / Up / Down) | 85/85/80/80 (Typ.)(CR≥10) |
| Response Time | 3.6/1.4 (Typ.)(Tr/Td) ms | 3.5/1.5 (Typ.)(Tr/Td) ms | 3.5/1.5 (Typ.)(Tr/Td) | ||
| Best View on | - | - | - | - | |
| Work Mode | TN, Normally White, Transmissive | TN, Normally White, Transmissive | TN, Normally White, Transmissive | ||
| Glass Thickness | |||||
| Transmissivity | |||||
| Color Depth | 16.7M 72% NTSC | 16.7M 75% NTSC | 16.7M 75% NTSC | 16.7M 75% NTSC | 16.7M 72% NTSC |
| Mass | 1.45Kgs (Typ.) | 1.52Kgs (Typ.) | 1.52Kgs (Typ.) | 1.52Kgs (Typ.) | 1.44Kgs (Typ.) |
| Used for | Desktop Monitor | Desktop Monitor | |||
| Touch Screen | Without | Without | Without | ||
| Refresh Rate | 75Hz | 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit) | 75Hz | 75Hz |
