LG Display LM270WR9-SSA2

Name: LM270WR9-SSA2
Brand: LG Display
SKU: LM270WR9-SSA2
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: LM270WR9-SSA2

Manufacturer:: LG Display

Category:: TFT-LCD Panel

Package:

Description:: LG Display 27" IPS LCM 3840×2160 350nits WLED eDP 30pins

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

LM270WR9-SSA2 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: LG Display

Panel Size:: 27"

TNVAIPS:: IPS

Resolution:: 3840×2160

CR:: 1900/3/23 8:01:00

Viewing Angle:: 89/89/89/89

Colors:: 1.07B

Outline Size:: 608.8(H)×349.4(V) ×15.3(D) mm

Treatment:

Brightness:: 350 cd/m² (Typ.)

Contrast Ratio:

View Direction:: Symmetry

Viewing Angle:: 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:

Best View on:

Work Mode:

Glass Thickness:

Transmissivity:

Color Depth:: 1.07B 100% sRGB

Mass:: 2.45/2.57Kgs (Typ./Max.)

Used for:

Touch Screen:

Refresh Rate:: 60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)

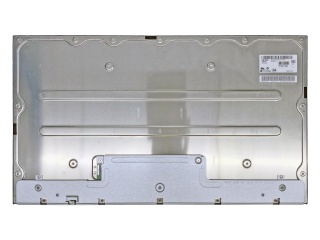

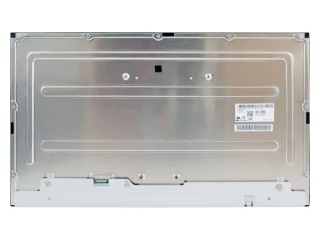

Part Number	LM270WR9-SSA1	LM270WR9-SSZ1	LM270WR9-SSA2
Manufacturer	LG Display	LG Display	LG Display
Panel Size	27"	27"	27"
TNVAIPS	IPS	IPS	IPS
Resolution	3840×2160	3840×2160	3840×2160
CR	1900/3/23 8:01:00	1900/3/23 8:01:00	1900/3/23 8:01:00
Viewing Angle	89/89/89/89	89/89/89/89	89/89/89/89
Colors	1.07B	1.07B	1.07B
Outline Size	608.8(W)×349.4(H) ×15.3(D) mm	608.8(W)×355.3(H) ×15.3(D) mm	608.8(H)×349.4(V) ×15.3(D) mm
Treatment	Antiglare (Haze 25%), Hard coating (3H)	Antiglare (Haze 25%), Hard coating (3H)
Brightness	400 cd/m² (Typ.)	400 cd/m² (Typ.)	350 cd/m² (Typ.)
Contrast Ratio	2000:1 (Typ.) (TM)	2000:1 (Typ.) (TM)
View Direction			Symmetry
Viewing Angle	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)
Response Time	14 (Typ.)(G to G)	14 (Typ.)(G to G)
Best View on	Symmetry	Symmetry
Work Mode	IPS, Normally Black, Transmissive	IPS, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	1.07B 97% DCI-P3	1.07B 96% DCI-P3	1.07B 100% sRGB
Mass	2.45/2.57Kgs (Typ./Max.)	2.28/2.40Kgs (Typ./Max.)	2.45/2.57Kgs (Typ./Max.)
Used for	Desktop Monitor; Medical Imaging	Desktop Monitor
Touch Screen	Without	Without
Refresh Rate	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	60Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)
