LG Display LM238WF1-SLK1

Name: LM238WF1-SLK1
Brand: LG Display
SKU: LM238WF1-SLK1
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: LM238WF1-SLK1

Manufacturer:: LG Display

Category:: TFT-LCD Panel

Package:

Description:: LG Display 23.8" IPS LCM 1920×1080 250nits WLED LVDS 30pins 75Hz

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

Product Details

LM238WF1-SLK1 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: LG Display

Panel Size:: 23.8"

TNVAIPS:: IPS

Resolution:: 1920×1080

CR:: 1900/2/10 16:01:00

Viewing Angle:: 89/89/89/89

Colors:: 16.7M

Outline Size:: 543 × 317.4 × 11.7 (H×V×D)

Treatment:: Antiglare, Hard coating (3H)

Brightness:: 250 cd/m² (Typ.)

Contrast Ratio:: 1000 : 1 (Typ.) (TM)

View Direction:

Viewing Angle:: 89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)

Response Time:: 14 (Typ.)(G to G) ms

Best View on:: Symmetry

Work Mode:: IPS, Normally Black, Transmissive

Glass Thickness:

Transmissivity:

Color Depth:: 16.7M 72% NTSC

Mass:: 2.00/2.10Kgs (Typ./Max.)

Used for:: Desktop Monitor; Industrial; Digital Signage; Healthcare

Touch Screen:: Without

Refresh Rate:: 75Hz

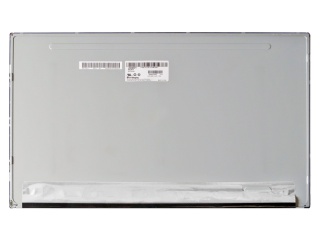

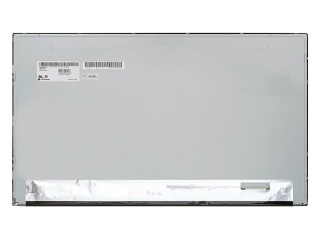

Part Number	LM238WF1-SLK1	LM238WF1-SLK2	LM238WF1-SLM1	LM238WF1-SLE1	LM238WF1-SLA1
Manufacturer	LG Display	LG Display	LG Display	LG Display	LG Display
Panel Size	23.8"	23.8"	23.8"	23.8"	23.8"
TNVAIPS	IPS	IPS	IPS	IPS	IPS
Resolution	1920×1080	1920×1080	1920×1080	1920×1080	1920×1080
CR	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00	1900/2/10 16:01:00
Viewing Angle	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89
Colors	16.7M	16.7M	16.7M	16.7M	16.7M
Outline Size	543 × 317.4 × 11.7 (H×V×D)	543(H)×317.4(V) ×11.7(D) mm	543×317.4×11.7 (H×V×D)	543(W)×317.4(H)×11.7(D) mm	543(W)×317.4(H) ×11.7(D) mm
Treatment	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)	Antiglare, Hard coating (3H)
Brightness	250 cd/m² (Typ.)	250 cd/m² (Typ.)	250 cd/m² (Typ.)	250 cd/m² (Typ.)	250 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)	1000:1 (Typ.) (TM)	1000 : 1 (Typ.) (TM)	1000:1 (Typ.) (TM)	1000:1 (Typ.) (TM)
View Direction		Symmetry		Symmetry
Viewing Angle	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10) (Left / Right / Up / Down)	89/89/89/89 (Typ.)(CR≥10)	89/89/89/89 (Typ.)(CR≥10)
Response Time	14 (Typ.)(G to G) ms	14 (Typ.)(G to G)	14 (Typ.)(G to G) ms	14 (Typ.)(G to G)	5 (Typ.)(G to G)
Best View on	Symmetry		Symmetry		Symmetry
Work Mode	IPS, Normally Black, Transmissive	IPS, Normally Black, Transmissive	IPS, Normally Black, Transmissive	IPS, Normally Black, Transmissive	IPS, Normally Black, Transmissive
Glass Thickness
Transmissivity
Color Depth	16.7M 72% NTSC	16.7M 72% NTSC	16.7M 72% NTSC	16.7M 72% NTSC	16.7M 72% NTSC
Mass	2.00/2.10Kgs (Typ./Max.)	2.00/2.10Kgs (Typ./Max.)	2.00/2.10Kgs (Typ./Max.)	2.27/2.39Kgs (Typ./Max.)	2.27/2.39Kgs (Typ./Max.)
Used for	Desktop Monitor; Industrial; Digital Signage; Healthcare	Desktop Monitor; Industrial; Digital Signage	Desktop Monitor; Industrial
Touch Screen	Without	Without	Without	Without	Without
Refresh Rate	75Hz	75Hz	75Hz ([Panelook copyright, copy is strictly prohibited] 120Hz (60HZ Input) : Embedded MEMC Circuit 120Hz+120Hz : 120Hz Panel+120Hz Backlight 240Hz (60HZ Input) : Embedded MEMC Circuit)	75Hz	75Hz
